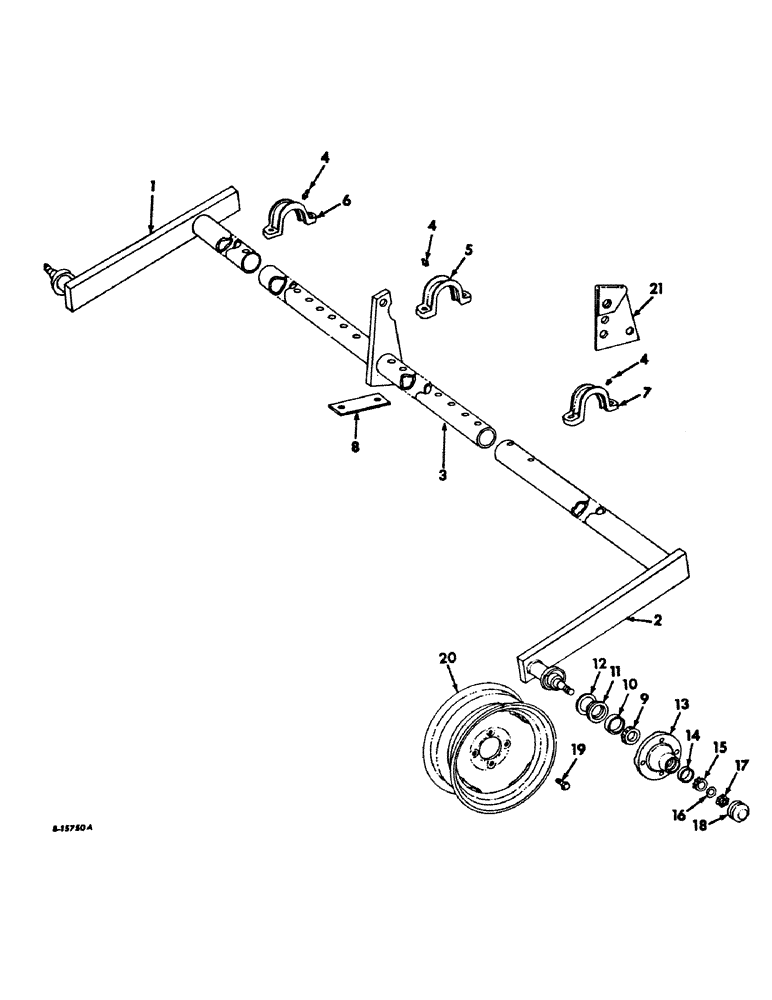

Запчасти Case IH 711 (R-07) - AXLE AND WHEELS

1

486306R2

AXLE ASSY, outer RH, machines built 1967 and 1968

1шт.

1

493918R1

AXLE ASSY, outer RH, machines built 1969 and since

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

NUT, 5/8-11 C-Z hex. jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

21363R1

SCREW, 5/8-11 x 5 C-Z hex-hd cap

2шт.

289068R1

WASHER, 21/32 x 1-1/4 x 11 ga C-Z

2шт.

2

486305R2

AXLE ASSY, outer LH, machines built 1967 and 1968

1шт.

2

493317R1

AXLE ASSY, outer LH, machines built 1969 and since

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

NUT, 5/8-11 C-Z hex. jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

21363R1

SCREW, 5/8-11 x 5 C-Z hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

3

493916R91

AXLE ASSY, center w/installing instructions

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap. str lub

3шт.

5

469433R1

CLAMP

axle plate

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CDP hex. nylon insert

2шт.

98402HA

SCREW, 1/2-13 x 6-1/2 type 4 C-Z hex-hd cap

2шт.

6

486311R1

CLAMP, axle RH

1шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP hex. nylon insert

2шт.

21412R1

BOLT

SCREW, 5/8-11 x 6 type 4 C-Z hex-hd cap

2шт.

21882R1

WASHER, 21/32 x 2 x 16 ga C-Z, or as required

2шт.

7

486310R1

CLAMP, axle LH

1шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP hex. nylon insert

2шт.

21412R1

BOLT

SCREW, 5/8-11 x 6 type 4 C-Z hex-hd cap

2шт.

21882R1

WASHER, 21/32 x 2 x 16 ga C-Z, or as required

2шт.

8

486304R1

BAR, spacer

1шт.

23042R1

WASHER

17/32 x 1 x 22 ga C-Z, axle plate shim

4шт.

9

651817R1

BEARING CUP

BEARING, wheel hub inner cup

2шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

11

472633R1

BUSHING

SLEEVE, oil seal wear

2шт.

12

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

13

465492R2

HUB

wheel

2шт.

14

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

16

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

2шт.

17

69442D

NUT

3/4-10 slt hex. jam

2шт.

18

651194R1

CAP

wheel hub

2шт.

19

663000R1

BOLT,1/2" - 20 x 1 1/32"

wheel hub

8шт.

20

662994R91

WHEEL

ASSY, disc type 15 x 4J rim, for 5.90 x 15, 6.40 x 15 or 6.70 x 15 tires

2шт.

20

463036R1

WHEEL (STEERING)

WHEEL ASSY, disc type 14 x 5KB rim, for 7.50 x 14 or 8.00 x 14 tires

2шт.

21

486316R1

SUPPORT, hyd cyl bracket

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.
