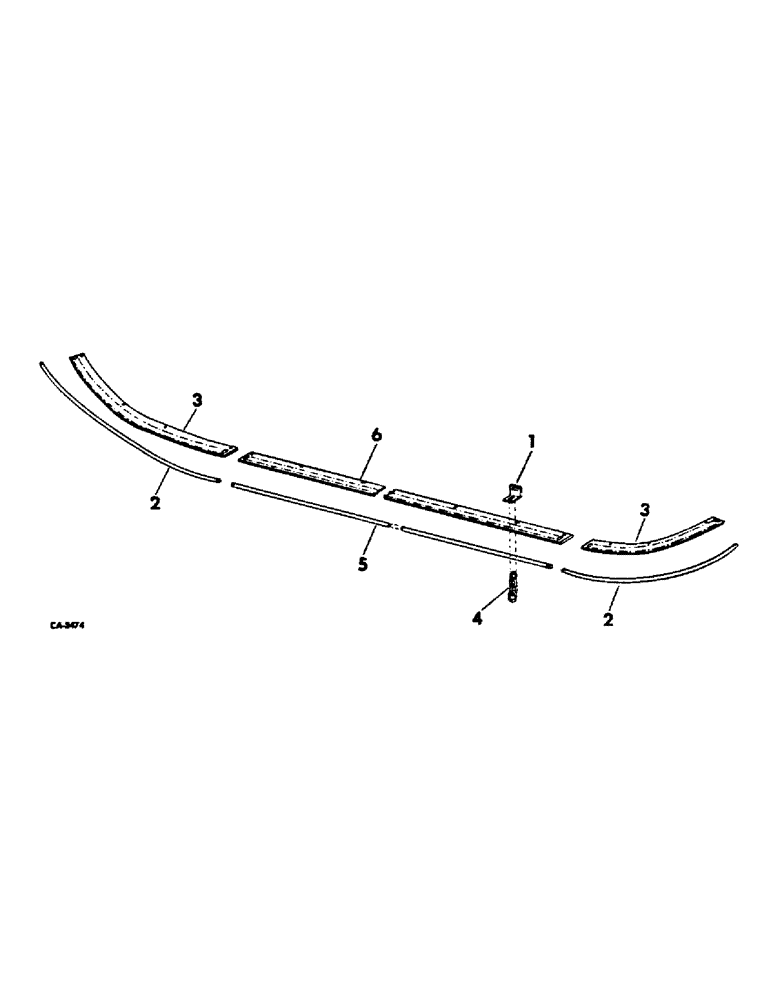

Запчасти Case IH 711 (R-18) - REAR CHAIN GUARD ATTACHMENT

1

485374R1

ANGLE, chain guard bracket

13шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

2

489990R1

ROD, chain guard end

2шт.

12202R1

PIN, 1/8 x 2 parkerized cot.

4шт.

3

489988R1

BRACKET, chain guard end

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

469318R91

CHAIN, safety 4 links, 66 for use with 2 in. spacing, 131 used for 1 in. spacing

1шт.

5

489989R1

ROD, chain guard center

1шт.

12202R1

PIN, 1/8 x 2 parkerized cot.

2шт.

6

489987R1

BRACKET, chain guard center

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.
