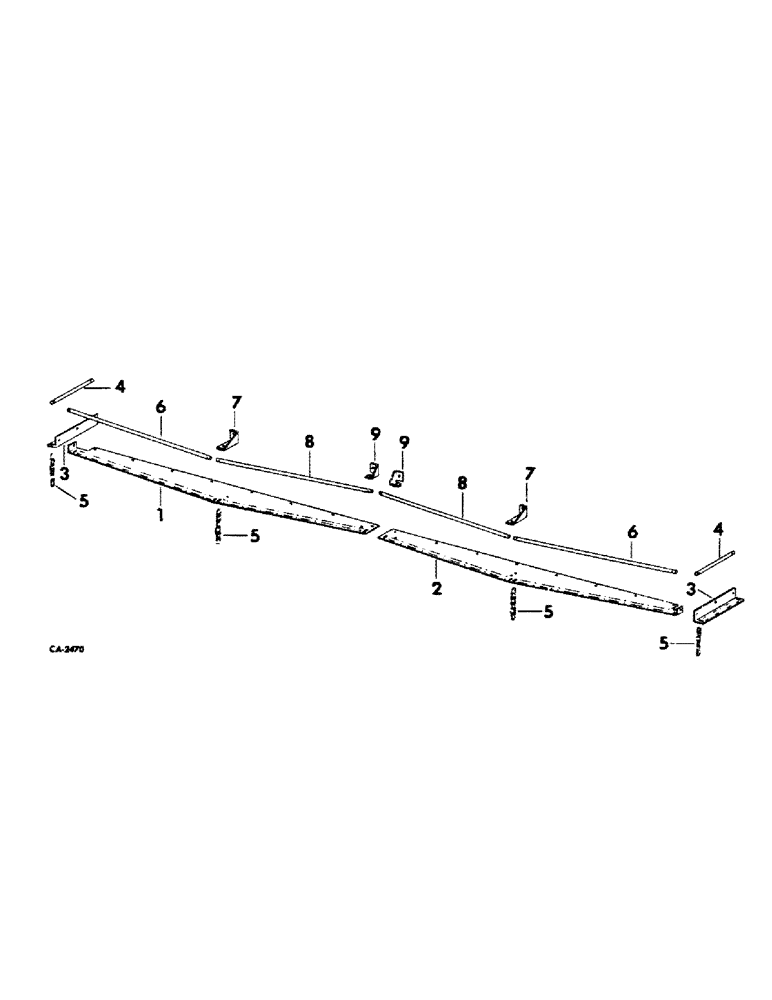

Запчасти Case IH 711 (R-17) - FRONT CHAIN GUARD ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
489980R1
REINFORCEMENT, chain front bracket RH
1шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
180123
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd
SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
2
489979R1
REINFORCEMENT, chain front bracket LH
1шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
180123
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd
SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
3
489985R1
BRACKET, chain side
2шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180123
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd
SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap
4шт.
180174
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5
SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
4
489986R1
ROD, chain side
2шт.
12202R1
PIN, 1/8 x 2 parkerized cot.
4шт.
5
665053R92
CHAIN, safety 6 links, 88 used for 2 in. spacing, 172 used for 1 in. spacing
1шт.
6
489981R1
ROD, chain guard, 36 in. long
2шт.
12202R1
PIN, 1/8 x 2 parkerized cot.
4шт.
7
489983R1
BRACKET, side chain guard
2шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C-Z hex-hd cap
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
8
489982R1
ROD, chain guard 39-1/8 in. long
2шт.
12202R1
PIN, 1/8 x 2 parkerized cot.
4шт.
9
489984R1
BRACKET, center chain guard
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C-Z hex-hd cap
2шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
Выбрано товаров: 36
