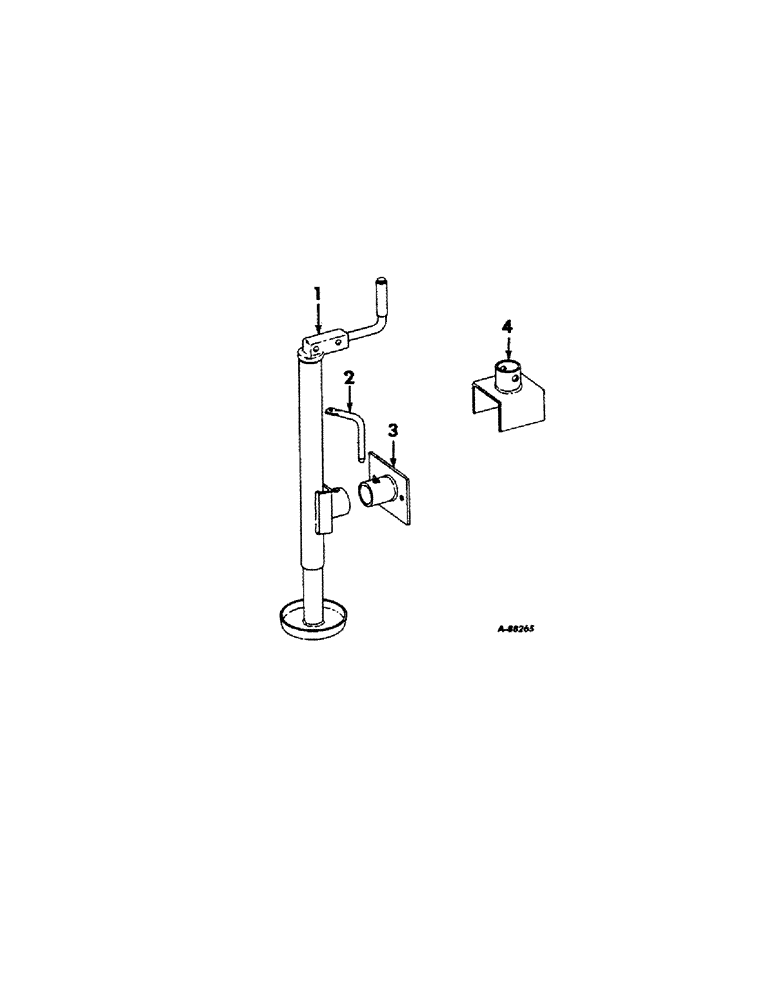

Запчасти Case IH 711 (R-17[A]) - JACK ATTACHMENT

1

486346R91

JACK ASSY

1шт.

2

472054R2

PIN ASSY, retainer

1шт.

3

472052R1

BRACKET, transport mounting

1шт.

4

486590R1

BRACKET, mounting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 C-Z hex-hd cap

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
