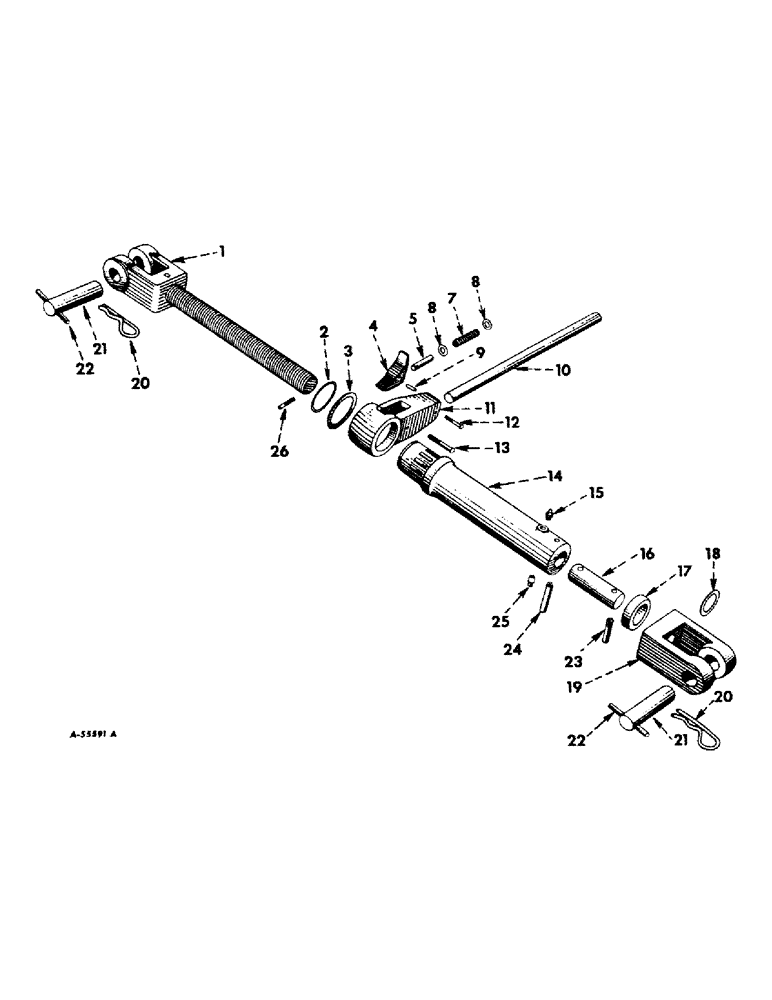

Запчасти Case IH 711 (R-16) - HAND LIFT ATTACHMENT

1

591117R91

CAPSCREW

SCREW & CYLINDER HD ASSY, adjusting

1шт.

2

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING, adjusting tube retaining

1шт.

3

22811R1

WASHER

2-1/32 x 2-3/4 x 14 ga C-Z

1шт.

4

591108R1

PAWL

RATCHET

1шт.

5

591102R1

PIN

ratchet arm

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

M296

SPRING

ratchet arm pin

1шт.

8

615047R1

WASHER

7/16 x 3/4 x 18 ga

2шт.

9

22955R1

PIN, 5/32 x 3/4 C-Z HV coiled spring

1шт.

10

591103R1

ROD

ARM, ratchet lever

1шт.

11

591109R1

SUPPORT

ratchet lever

1шт.

12

22971R1

PIN

5/32 x 1-1/4 C-Z HV coiled spring

1шт.

13

22972R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

14

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

adjusting hand lift

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

591105R1

ANCHOR

adjusting screw

1шт.

17

50738V

THRUST BEARING

adj screw anchor thrust

1шт.

18

591474R1

COLLAR

hand lift

1шт.

19

591110R1

YOKE

adjusting screw

1шт.

20

591107R1

COTTER PIN

quick attachable cot.

1шт.

21

591104R1

PIN

hand lift locking

2шт.

22

443186

GROOVED PIN,3/8" x 2 3/4", Type E

Pin, Grooved, 3/8" x 2 3/4", Type E

2шт.

23

22977R1

PIN,3/8" x 1 3/4", Coiled

1шт.

24

22976R1

PIN, 3/8 x 2 C-Z HV coiled spring

2шт.

25

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto. sq-hd pipe

1шт.

26

591101R1

PIN

hand lift stop

1шт.
