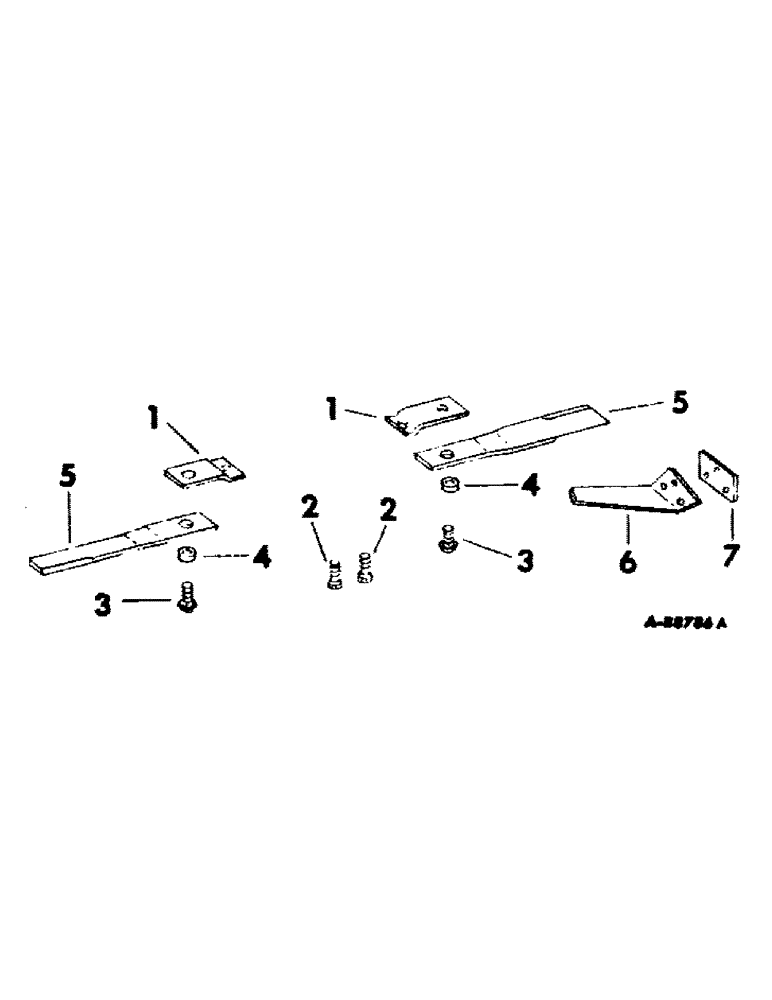

Запчасти Case IH 711 (R-15) - SHREDDING ATTACHMENT, BLADES AND RELATED PARTS

1

492009R1

HAMMERSTRAP

4шт.

2

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 C-Z type 4 hex-hd cap

4шт.

19647R1

LOCK NUT,5/8"-11, GC

NUT, 5/8-11 hex. nylon insert

4шт.

3

489123R2

BOLT, 7/8-9 x 2.40 type 4 sq-nk crg

4шт.

19749R1

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 nylon insert

4шт.

4

484929R1

BUSHING

blade, for all 1/2 inch blades

2шт.

5

486300R91

PACKAGE

BLADE W/BUSHING, 1/2 str hard surface LH, pair

1шт.

5

484943R91

PACKAGE

BLADE W/BUSHING, 1/2 str hard surface RH, pair

1шт.

6

472793R2

KNIFE

SUPPORT, shredding knife side mounted LH, for outboard rotation only

1шт.

6

486337R2

SUPPORT, shredding knife side mounted RH, for outboard rotation only

1шт.

7

484456R1

PLATE, reinforcement

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.
