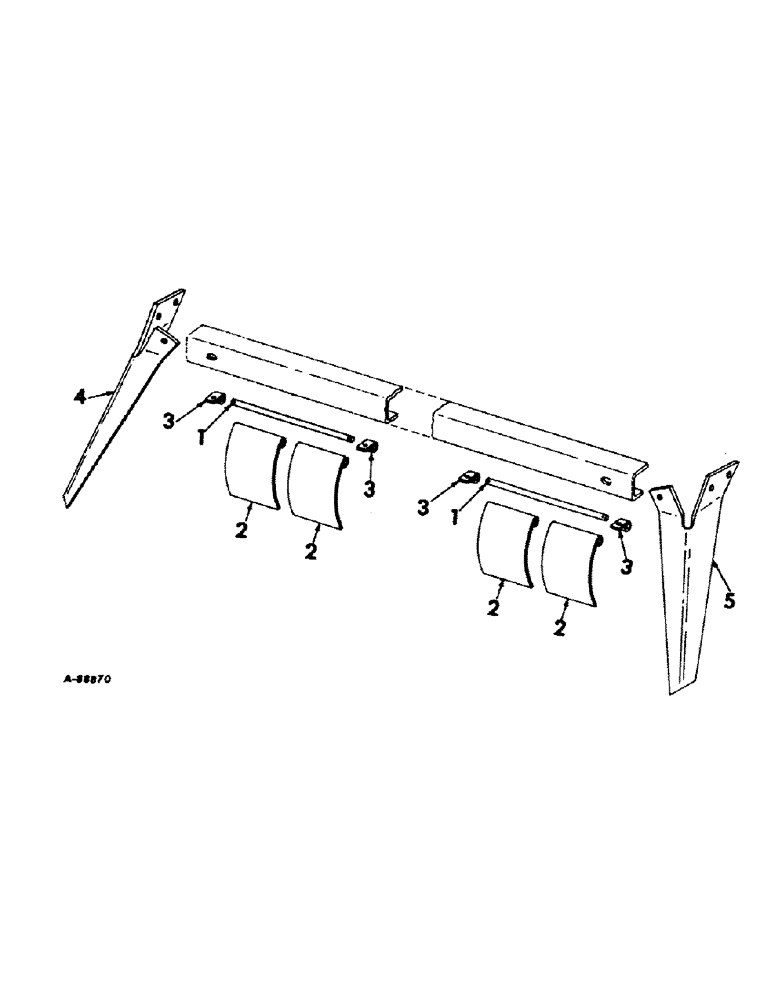

Запчасти Case IH 711 (R-13) - DIRT SHIELD AND ROW CROP PICKUP ATTACHMENT

1

484544R1

ROD, curtain hanger

2шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 parkerized cot.

4шт.

2

488271R1

CURTAIN, deflector

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

3

484545R1

CLIP, dirt shield

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

484540R1

FINGER, pickup LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

3шт.

5

484541R1

FINGER, pickup RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

3шт.
