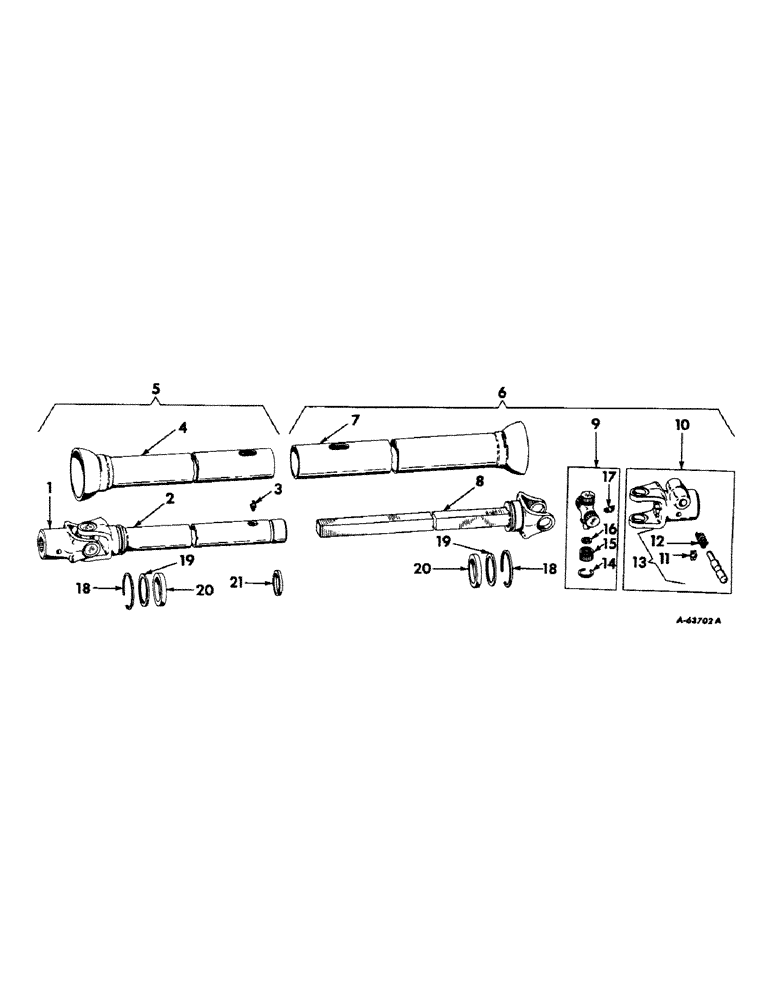

Запчасти Case IH 711 (R-11) - POWER DRIVE EQUIPMENT

1

664179R1

YOKE

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 special cone-pt set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

2

466372R1

YOKE

TUBE W/YOKE

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lub

1шт.

4

466374R2

SHIELD

inner

1шт.

5

466369R92

SHAFT

JOINT ASSY, single universal shielded rear half, implement end

1шт.

6

472893R91

JOINT ASSY, single universal shielded front half, tractor end, unit B

1шт.

6

935843R91

SEAL ASSY.

JOINT ASSY, single universal shielded front half, tractor end, unit A

1шт.

7

466371R1

SHIELD

outer

1шт.

8

935844R91

YOKE

W/SHAFT

1шт.

9

660116R91

NUT

KIT, center cross service, used w/joint assy, 935843R91

1шт.

9

347960R91

U-JOINT SPIDER

KIT, center cross service, used w/joint assy, 466369R92 & 472893R91

1шт.

10

583876R11

YOKE

ASSY, quick detachable, unit B

1шт.

10

660484R21

FORK

YOKE ASSY, PTO locking, unit A

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

587479R1

SPRING

locking pin, unit B

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin, unit A

1шт.

13

631976R91

PIN

ASSY, locking, unit B

1шт.

13

455346R21

PIN

ASSY, locking unit A

1шт.

14

495962R1

RING

snap

8шт.

15

661671R91

JOINT

BEARING ASSY, needle, part of center cross service kit 660116R91

4шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 x 65 deg lub

2шт.

18

613436R1

CLAMP

RING, shield snap

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

1шт.

21

613439R1

BRACKET

BEARING, nylon support

1шт.
