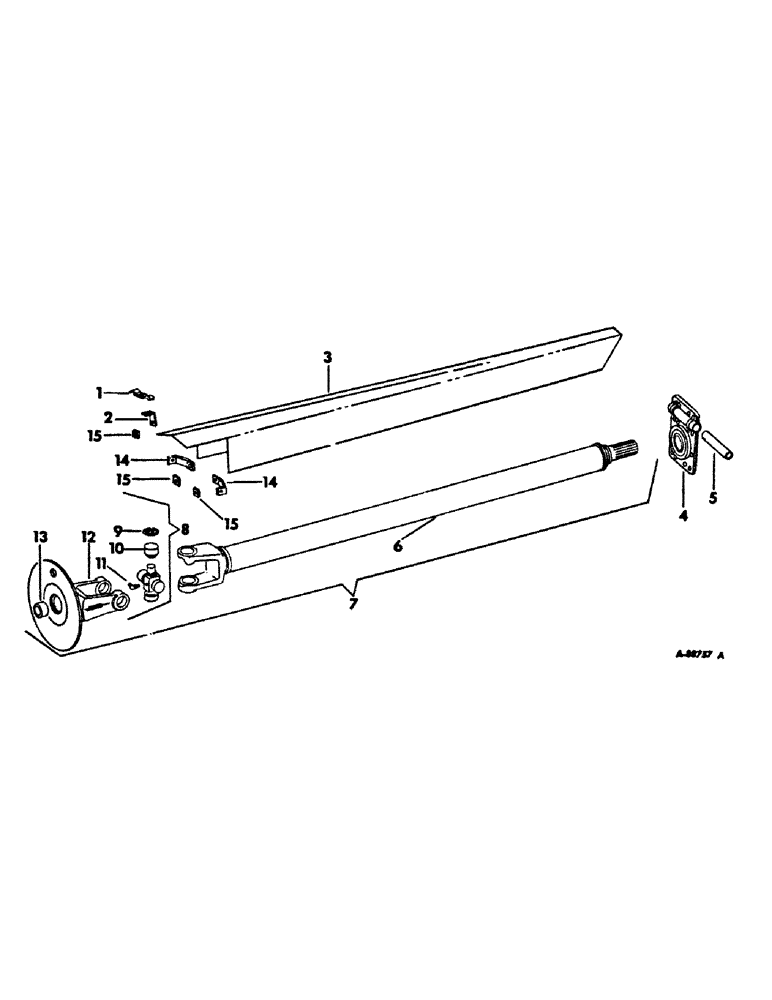

Запчасти Case IH 711 (R-10) - REAR POWER DRIVE AND SHIELD

1

515030R1

CLAMP

hose

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1 C-Z hex-hd cap

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

3шт.

472144R1

NUT

3/8-16 C-Z hex. lock

3шт.

2

486326R1

BRACKET, PTO shield rear center

1шт.

3

486362R1

SHIELD W/PRODUCT GRAPHIC ASSY, PTO

1шт.

21458R1

SCREW W/NYLON INSERT, 1/2-13 x 1 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

ST669

BEARING ASSY,35mm ID

BEARING, pedestal ball

1шт.

5

463580R1

SPACER,1/2" Pipe x 4.109"

pedestal ball brg

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 nylon insert hex.

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

1/2-13 x 6 C-Z hex-hd cap

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

6

470067R91

YOKE, tube & stub assy

1шт.

7

485497R91

JOINT ASSY, rear drive

1шт.

8

347960R91

U-JOINT SPIDER

KIT, center cross service

1шт.

9

495962R1

RING

snap

4шт.

10

BEARING ASSY, needle, order center cross service kit, 347960R91

4шт.

11

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PFT 65 deg angle lub

1шт.

12

485704R91

YOKE

ASSY, flange

1шт.

13

485393R1

BUSHING

1шт.

14

486323R1

BRACKET, PTO shield rear side

2шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 16 x 1 C-Z hex-hd cap

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

15

471111R1

PAD

SPACER, rubber

3шт.
