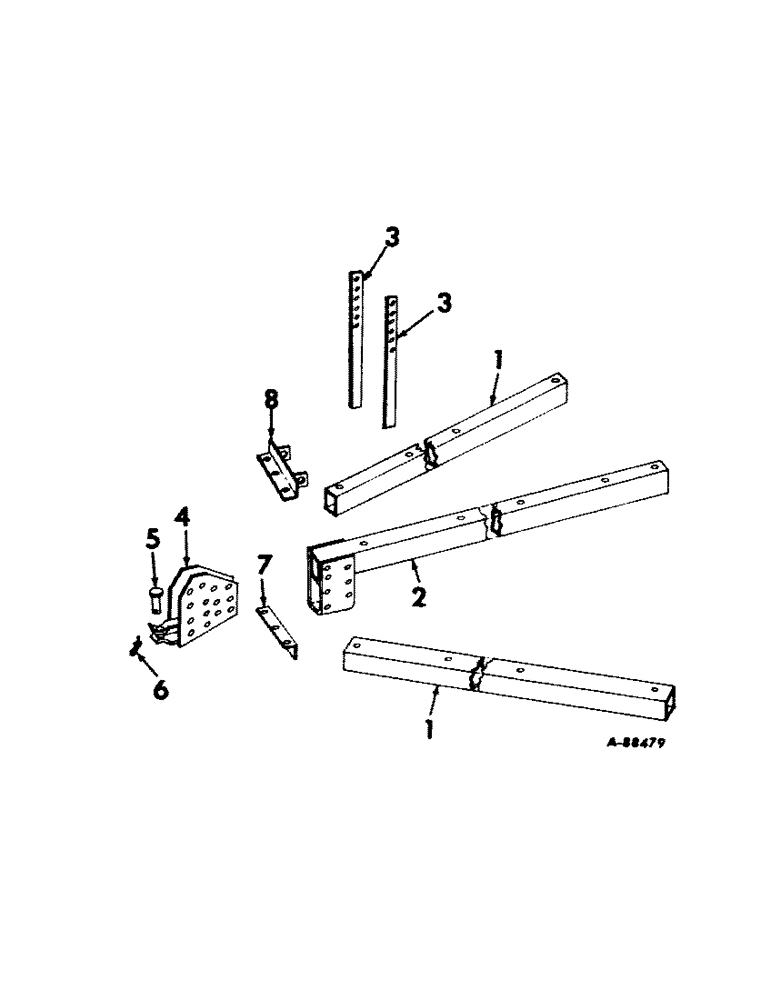

Запчасти Case IH 711 (R-09) - HITCH

1

486317R1

TUBE, outside frame

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd cap

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 znd hex-hd cap

4шт.

215723

BOLT,Hex, 1/2" - 13 x 5 3/4", Gr 5

SCREW, 1/2-13 x 5-3/4 znd hex-hd cap

2шт.

131101

LOCK WASHER

1/2"

8шт.

486801R1

WASHER

.531 x 2 x 1/4 C-Z

8шт.

2

486526R1

TUBE ASSY, center

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd cap

1шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 znd hex-hd cap

2шт.

215723

BOLT,Hex, 1/2" - 13 x 5 3/4", Gr 5

SCREW, 1/2-13 x 5-3/4 C-Z hex-hd cap

1шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2-13 x 6-1/2 znd hex-hd cap

1шт.

131101

LOCK WASHER

1/2"

5шт.

486801R1

WASHER

.531 x 2 x 1/4 C-Z

5шт.

3

488270R1

BRACE, PTO support

2шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP hex. nylon insert

2шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap type 4

2шт.

4

486312R1

HITCH ASSY, adjustable

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 C-Z hex-hd cap

3шт.

131101

LOCK WASHER

1/2"

3шт.

5

484984R1

PIN, hitch

1шт.

6

520175R1

CLIP

PIN, quick attachable cot.

1шт.

7

486318R1

ANGLE, hitch tie

1шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP hex. nylon insert

3шт.

22448R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

SCREW, 5/8-11 x 5-3/4 znp type 4 hex-hd cap

3шт.

8

488268R1

ANGLE ASSY, hitch

1шт.
