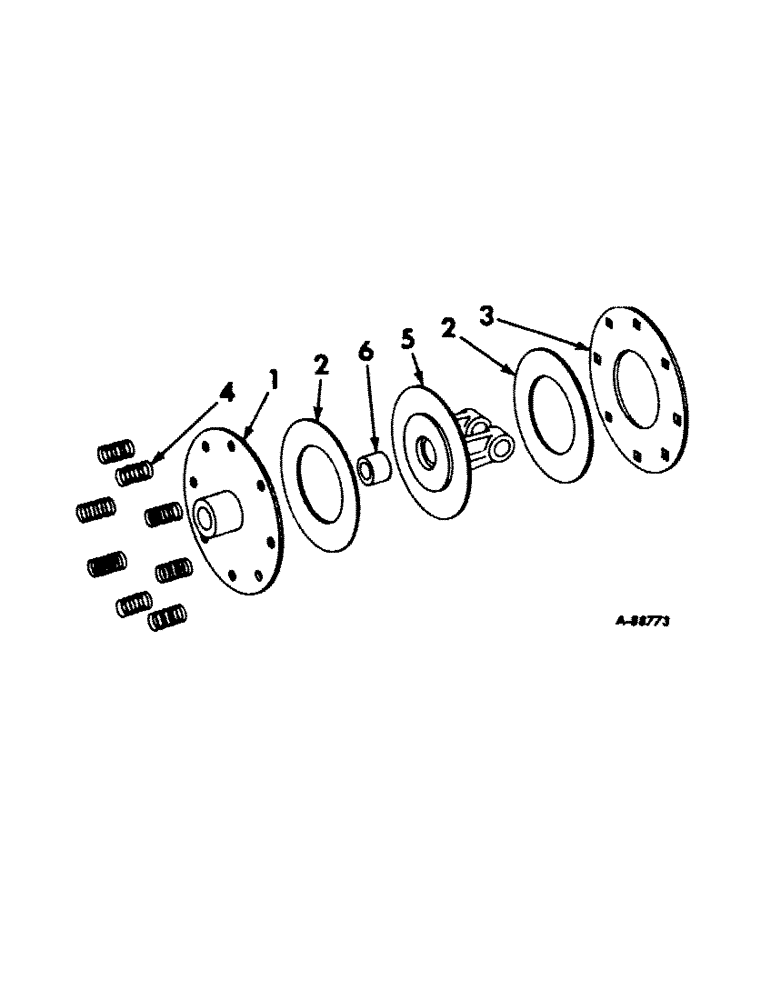

Запчасти Case IH 711 (R-09[A]) - SLIP CLUTCH

1

486320R1

HUB ASSY, slip clutch, machines built 1967 and 1968

1шт.

124934

HOSE

1/2-20 C-Z hex. jam

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 cone-pt sq-hd set

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

3шт.

1

492505R1

HUB ASSY, slip clutch, machines built 1969 and since

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 C-Z hex. jam

1шт.

492123R1

BOLT,Square, 1/2" - 20 x 1 1/2", Steel

SCREW, 1/2-20 x 1-1/2 cone-pt sq-hd set

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

3шт.

2

474599R1

FACING

clutch

2шт.

3

474600R1

RETAINER

PLATE, clutch floating

1шт.

22879R1

BOLT

1/2-13 x 4-1/4 C-Z no. 3 plow

8шт.

4

C13263

SPRING

clutch

8шт.

474598R1

NUT

1/2-13 spring adj

8шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 hex. jam

8шт.

5

485704R91

YOKE

ASSY, flange

1шт.

6

485393R1

BUSHING

1шт.
