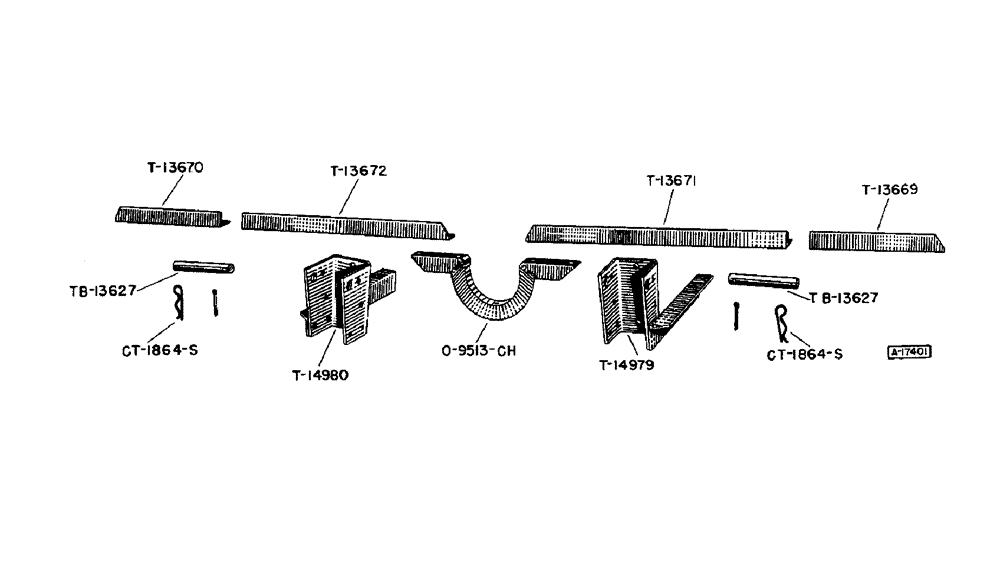

Запчасти Case IH 604 (006[A]) - HITCH BRACKETS AND FRONT ANGLES, 604

TB13627

PIN - hitch (7/8" rd. x 5-15/16") (YR. 56-)

2шт.

3/16" X 1-3/4" COTTER PIN

2шт.

T13669

ANGLE - front cross R.H. outer (YR. 56-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

T13670

ANGLE - front cross L.H. outer (YR. 56-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

T13671

ANGLE - front cross R.H. center (YR. 56-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

1/4" X 5/8" W.B. HEAD RIVET

1шт.

T13672

ANGLE - front cross L.H. center (YR. 56-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

1/4" X 5/8" W.B. HEAD RIVET

1шт.

T14979

BRACKET - hitch R.H. (YR. 56-)

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

T14980

BRACKET - hitch L.H. (YR. 56-)

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

O9513CH

GUARD - P.T.O. tunnel sheet (YR. 56-)

1шт.

CT1864S

X

COTTER - hairpin, for hitch pins (Use T25682) (YR. 56-60)

2шт.

T25682

SPLIT PIN

COTTER - hairpin, for hitch pin (YR. 61-)

2шт.
