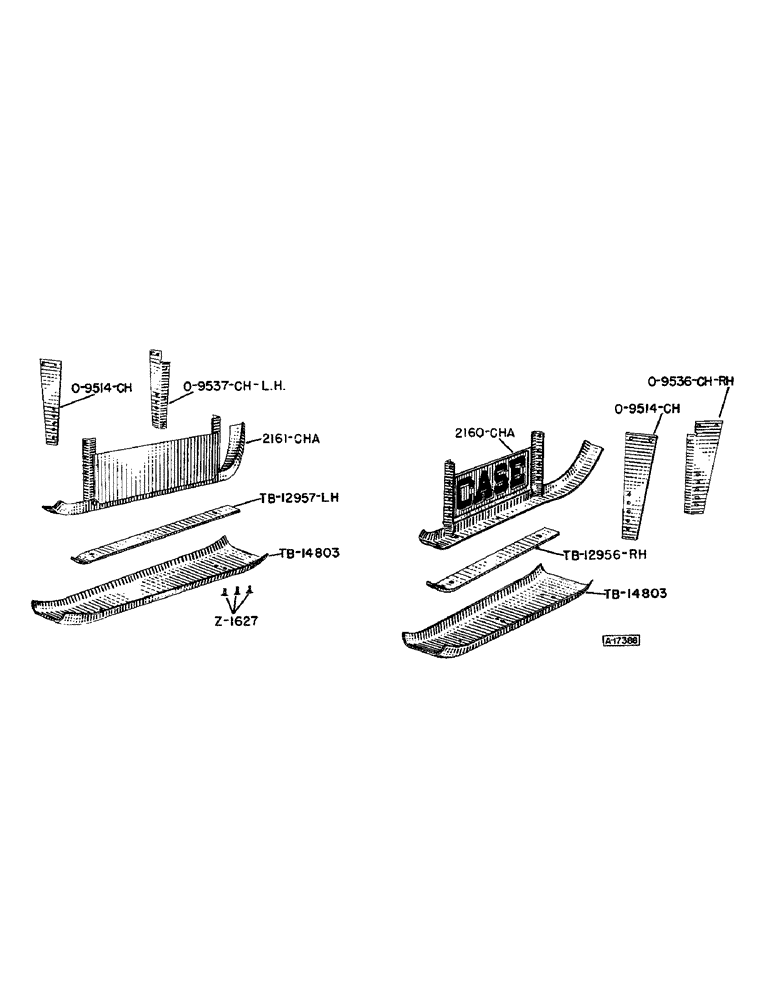

Запчасти Case IH 604 (018) - GAUGE RUNNER SKID SHOES

TB12956

SHOE - gauge runner skid R.H. (Heavy duty) (YR. 54-)

1шт.

TB12957

SHOE - gauge runner skid L.H. (Heavy duty) (YR. 54-)

1шт.

TB14774M

SET OF (2) GAUGE RUNNER SKID SHOES (See TB14803) (YR. 54-)

1шт.

TB14803

SHOE - gauge runner skid (See TB14774M) (YR. 54-)

2шт.

O9514CH

BRACKET - gauge runner support, rear (YR. 54-)

2шт.

5/16" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

O9536CH

BRACKET - gauge runner support, R.H. front (YR. 54-)

1шт.

5/16" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

5/16" X 1" N.C HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9537CH

BRACKET - gauge runner support L.H. front (YR. 54-)

1шт.

5/16" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

5/16" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

2160CHA

RUNNER - gauge R.H. (YR. 54-)

1шт.

45-514

5/16" x 7/8" rd. hd. rivet But Hd, 5/16" x 7/8"

2шт.

2161CHA

RUNNER - gauge L.H. (YR. 54-)

1шт.

45-514

5/16" x 7/8" rd. hd. rivet But Hd, 5/16" x 7/8"

2шт.

Z1627

BOLT (3/8" x 1" P#3 plow w/nut) for runner shoe (YR. 54-)

6шт.
