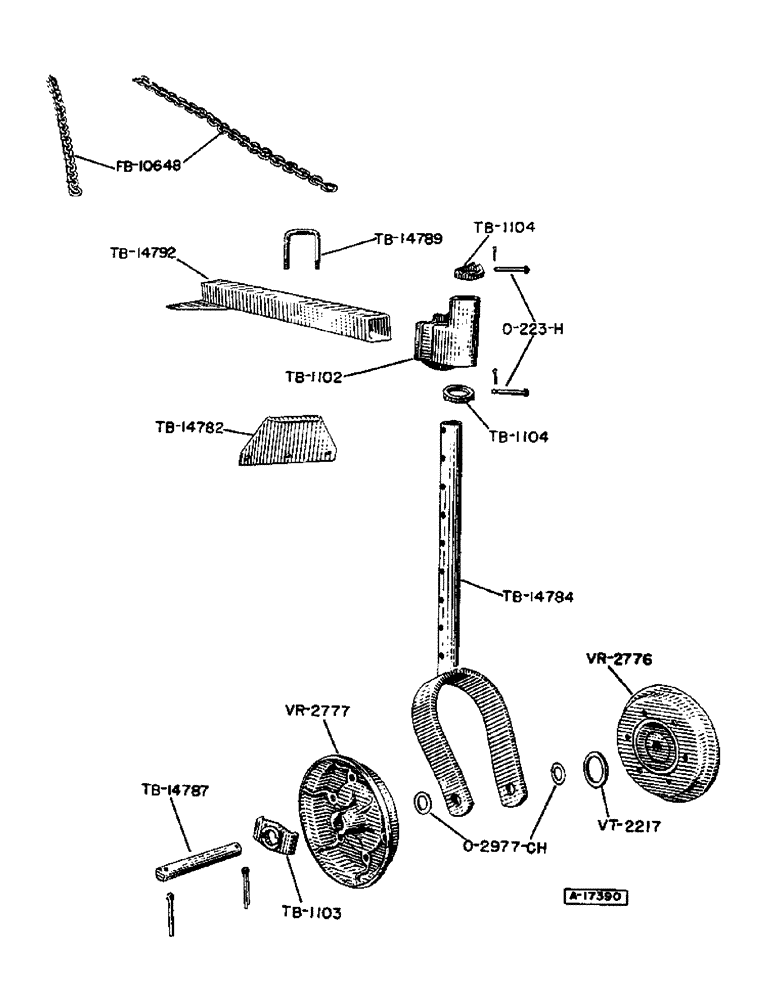

Запчасти Case IH 604 (016) - GAUGE WHEEL

FB10648

CHAIN (#7-0 Elwell str. links - 36 links) mast post (YR. 56-)

2шт.

1/2" X 1-1/2" N.C. HEX. BOLT W/NUT

2шт.

1/2" X 3" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

1-3/8" X 9/16" X #12 GA. WROT WASHER

4шт.

TB1102

BRACKET - swivel shaft pivot (YR. 56-)

1шт.

1/2" X 3" N.C. HEX. BOLT W/FULL THREAD AND NUT

1шт.

TB1103

COLLAR - axle, anti - rotating (YR. 56-)

1шт.

TB1104

COLLAR - swivel, wheel yoke adjusting (YR. 56-)

2шт.

TB14782

BRACKET - wheel support (YR. 56-)

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

TB14784

YOKE - wheel swivel (YR. 56-)

1шт.

TB14787

AXLE - wheel (7/8" rd. x 7-1/4") (YR. 56-)

1шт.

1/4" X 1-1/2" COTTER PIN

1шт.

1/4" X 2" COTTER PIN (YR. 56-)

1шт.

TB14789

"U" BOLT - wheel support (1/2" rd. x 8-3/16") (YR. 56-)

1шт.

1/2" LOCKWASHER W/N.F. HEX. NUT

2шт.

TB14792

TUBE - wheel support (YR. 56-)

1шт.

VT2217

X

WASHER - cork (YR. 56-)

1шт.

O2977CH

WASHER (1-1/2" O.D. x 29/32" I.D. x #12 ga.) spacer (YR. 56-)

2шт.

O223H

PIN - swivel shaft collar (3/8" rd. x 2-1/2" drilled) (Use T25068) (YR. 56-60)

2шт.

1/8" X 3/4" COTTER PIN

2шт.

T25068

PIN - swivel collar (3/8" x 2-1/2" drilled rd. hd. rivet (YR. 61-)

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

VR2776

WHEEL - with hub R.H. (YR. 56-)

1шт.

3/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

6шт.

VR2777

WHEEL - with hub L.H. (YR. 56-)

1шт.

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

TIRE - implement, 4 ply. (Smooth tread 4:00-8)

1шт.
