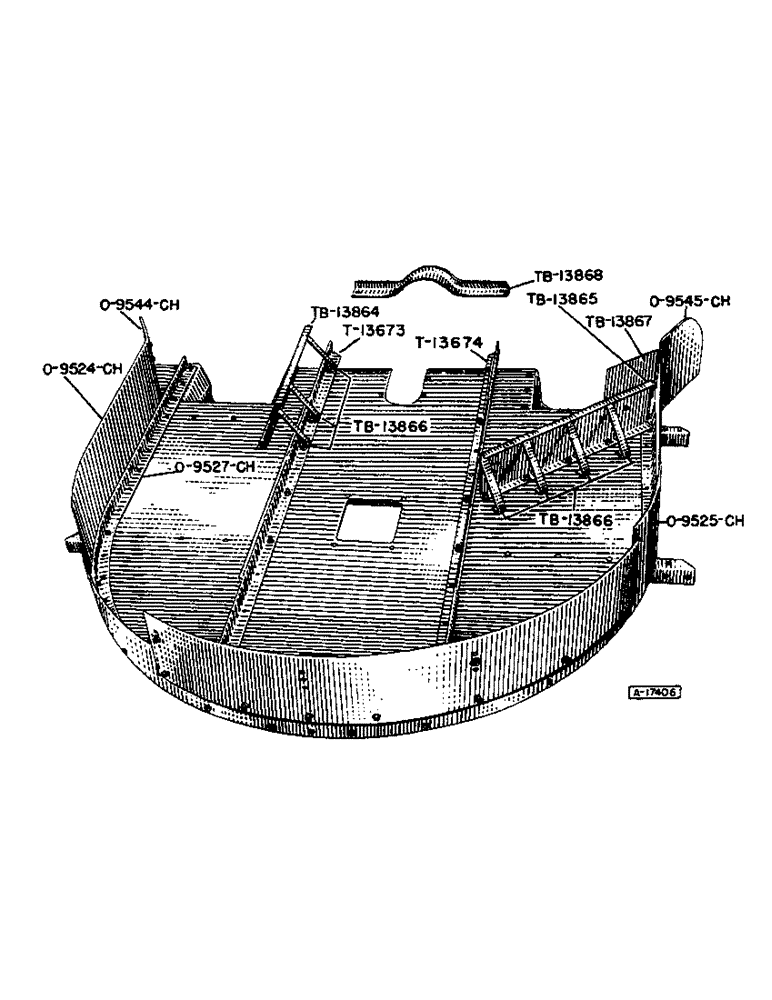

Запчасти Case IH 604 (013) - MAIN FRAME, BOTTOM SIDE, #604

T13673

ANGLE - gear box sill support R.H. (YR. 56-)

1шт.

T13674

ANGLE - gear box sill support L.H. (YR. 56-)

1шт.

TB13864

PLATE - shear R.H. (YR. 56-)

1шт.

5/16" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

3/8" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

3/8" X 1" N.C. HEX BOLT W/LOCKWASHER AND NUT

1шт.

3/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

1-1/8" X 1/2" X #7 GA. WROT WASHER

1шт.

TB13865

PLATE - shear L.H. (YR. 56-)

1шт.

3/8" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

TB13866

BRACE - shear plate (YR. 56-)

7шт.

3/8" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

7шт.

TB13867

FILLER - shear plate L.H. (YR. 56-)

1шт.

5/16" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

6шт.

TB13868

REINFORCEMENT - P.T.O. tunnel sheet guard brace (YR. 56-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

O9524CH

SHEET - ROTOR SIDE COVER R.H. (YR. 56-)

1шт.

1/4" X 1/2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

5/16" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

1/4" X 5/8" W.B. HEAD RIVET

8шт.

O9525CH

SHEET - rotor side cover L.H. (YR. 56-)

1шт.

1/4" X 1/2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

5/16" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

1/4" X 5/8" W.B. HEAD RIVET

8шт.

O9527CH

ANGLE - main frame, outer (YR. 56-)

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

5/16" X 3/4" HEX. BOLT W/LOCKWASHER AND NUT

6шт.

O9544CH

SHEET - flare R.H. (YR. 56-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9545CH

SHEET - flare L.H. (YR. 56-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.
