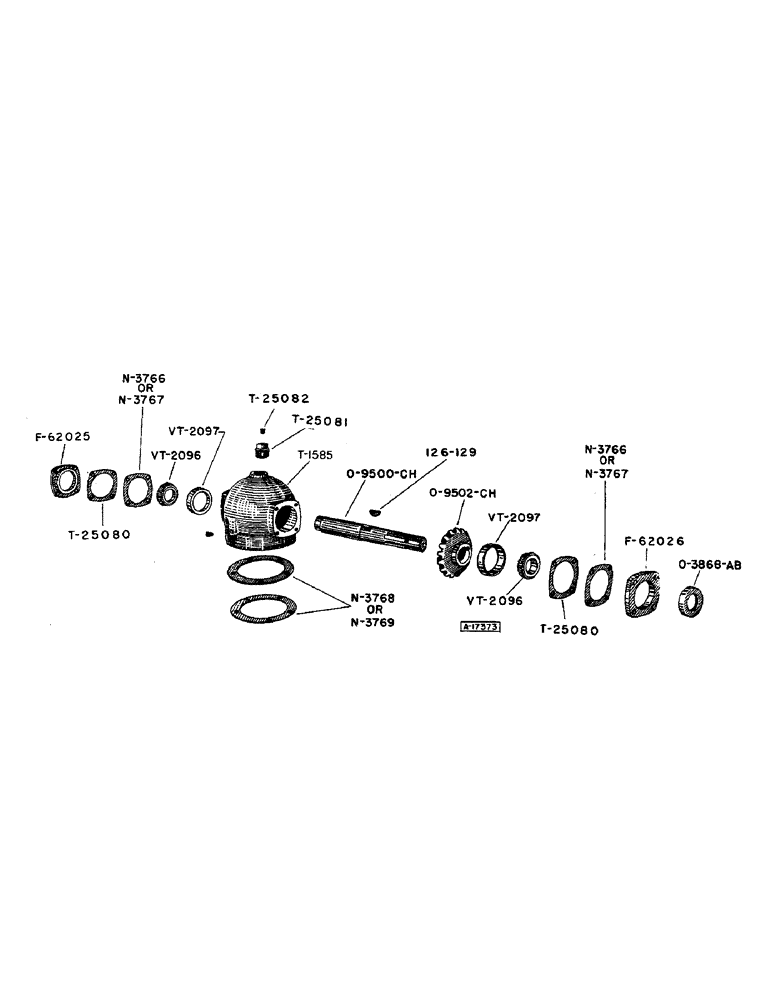

Запчасти Case IH 604 (008A) - GEAR BOX ASSEMBLY

F62025

CAP - gear box rear bearing (YR. 62-)

1шт.

5/16" X 1" N.C. HEX. BOLT (13-516) W/LOCKWASHER (92-5)

2шт.

F62026

CAP - gear box front bearing (YR. 62-)

1шт.

5/16" X 1" N.C. HEX. BOLT (13-516) W/LOCKWASHER (92-5)

2шт.

N3766

SHIM,.005" Thk

For F62025 and F62026 caps (YR. 54-) .005" Thk

1шт.

N3767

SHIM - (.010") for F62025 and F62026 caps (YR. 54-)

3шт.

N3768

SHIM - (.005") vertical shaft housing (YR. 54-)

1шт.

N3769

SHIM - (.010") vertical shaft housing (YR. 54-)

3шт.

T1585

BOX - gear (YR. 59-)

1шт.

T19187

GEAR BOX - cpt. (Use T60085) (YR. 59-60)

1шт.

T25080

SHIM

- (.005") F62025 and F62026 caps (YR. 61-)

1шт.

T25081

CAP - filler, gear box (YR. 61-)

1шт.

T25082

VALVE (1/8" pipe thread) breather (YR. 61-)

1шт.

T60085

GEAR BOX - cpt. (YR. 61-)

1шт.

O3868AB

OIL SEAL

- P.T.O. shaft front bearing (YR. 54-)

1шт.

O8651AB

X

KEY - bevel gear to P.T.O. shaft (Use 126-129) (YR. 54-60)

1шт.

VT2096

X

CONE - bearing P.T.O. shaft (YR. 54-)

2шт.

VT2097

X

CUP - bearing P.T.O. shaft (YR. 54-)

2шт.

76BF

CAP - gear box rear bearing (Use F-62025) (YR. 54-62)

1шт.

77BF

CAP - gear box front bearing (Use F62026) (YR. 54-62)

1шт.

485CH

BOX - gear (Use T1585) (YR. 54-58)

1шт.

1/8" STD. PIPE PLUG (221-1)

1шт.

1/4" STD. PIPE PLUG (221-2)

1шт.

O9111CH

SHIM - (.005") 76BF and 77BF caps (Use T25080) (YR. 54-60)

1шт.

O9121CH

CAP - filler, gear box (Use T25081) (YR. 54-60)

1шт.

O9122CH

VALVE - (1/8" pipe thread) breather (Use T25082) (YR. 54-60)

1шт.

O9500CH

SHAFT - P.T.O. (YR. 54-)

1шт.

O9502CH

GEAR - bevel, P.T.O. (YR. 54-)

1шт.

2157CHA

GEAR BOX - cpt. (Use T60085) (YR. 55-59)

1шт.

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

(YR. 61-) #C, 5/16" x 1 1/8", HT

1шт.
