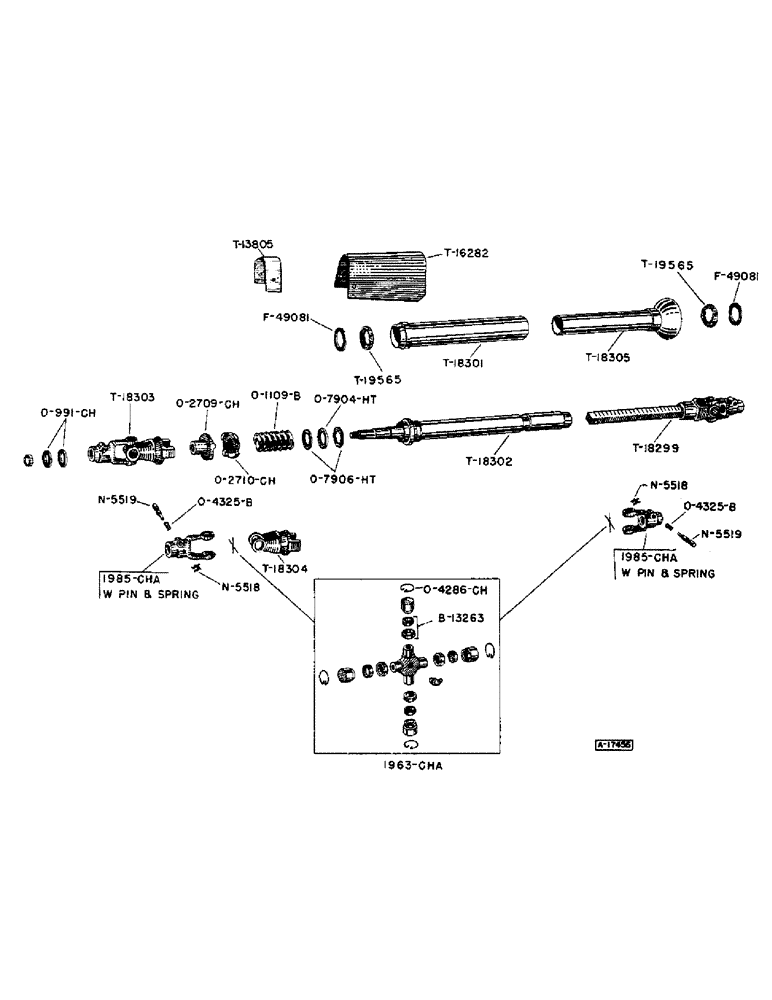

Запчасти Case IH 602 (007A) - P.T.O. HOOK-UP AND JUMP CLUTCH

F40981

WASHER - thrust bearing, P.T.O. shield (YR. 61-)

2шт.

N5518

WASHER

- X lock for N5519 pin (YR. 61-)

2шт.

N5519

PIN

- P.T.O. hitch (Includes N5518X washer) (YR. 61-)

2шт.

B13263

WASHER - (Cork) for needle bearing type universal joint (YR. 61-)

8шт.

T13805

BRACKET - support, P.T.O. telescope shield (YR. 61-)

1шт.

T16282

SHIELD - rear (YR. 61-)

1шт.

3/8" X 3/4" N.C. HEX. HD. BOLT (13-612) W/LOCKWASHER (92-6) AND HEX. NUTS (25-106)

3шт.

T16283

P.T.O. HOOK-UP CPT. W/JUMP CLUTCH (YR. 61-)

1шт.

T18299

SHAFT AND JOINT ASSEMBLY (YR. 61-)

1шт.

1/8" - 67-1/2 DEGREE ANGLE 29/32" OVERALL FITTING (219-40)

1шт.

T18301

OUTER SHIELD (YR. 61-)

1шт.

T18302

TUBE AND SHAFT (YR. 61-)

1шт.

1/4" - 28 STRAIGHT 1-15/32" OVERALL FITTING (219-49)

1шт.

7/8" - 14. N.F. HEX. SLOTTED NUT (25-1314)

1шт.

1/8" X 1-1/2" COTTER (132-52)

1шт.

T18303

JOINT AND DRIVING PLATE (Consists of (1) 1985CHA yoke (1) 1963CHA center cross kit and (1) T18304 yoke and driving plate) (YR. 61-)

1шт.

1/8" - 67-1/2 DEGREE ANGLE 29/32" OVERALL FITTING (219-40)

1шт.

T18304

YOKE AND DRIVING PLATE (YR. 61-)

1шт.

1/8" STRAIGHT FITTING (219-1)

1шт.

T18305

INNER SHIELD (YR. 61-)

1шт.

T19565

SHIELD

BEARING - nylon (YR. 61-)

2шт.

O1109B

SPRING - jump clutch (YR. 61-)

1шт.

O4325B

X

SPRING - hitch pin (YR. 61-)

1шт.

O991CH

WASHER - (2" O.D. x #10 ga.) jump clutch drive shaft (YR. 61-)

2шт.

O20709CH

HUB - jump clutch, notched (YR. 61-)

1шт.

O2710CH

PLATE - jump clutch, notched (YR. 61-)

1шт.

O4286CH

SNAP RING, center cross (YR. 61-)

8шт.

1963CHA

KIT - universal joint center parts (Includes center cross (4) needle cup (4) TB13263 cork washer and (4) O4286CH snap rings) (YR. 61-)

2шт.

1985CHA

YOKE - (1-3/8" spline) universal joint (Includes (1) N5519 pin and (1) O4325B spring) (YR. 61-)

2шт.

O7904HT

WASHER - jump clutch bronze thrust (YR. 61-)

1шт.

O7906HT

WASHER - jump clutch steel thrust (YR. 61-)

2шт.
