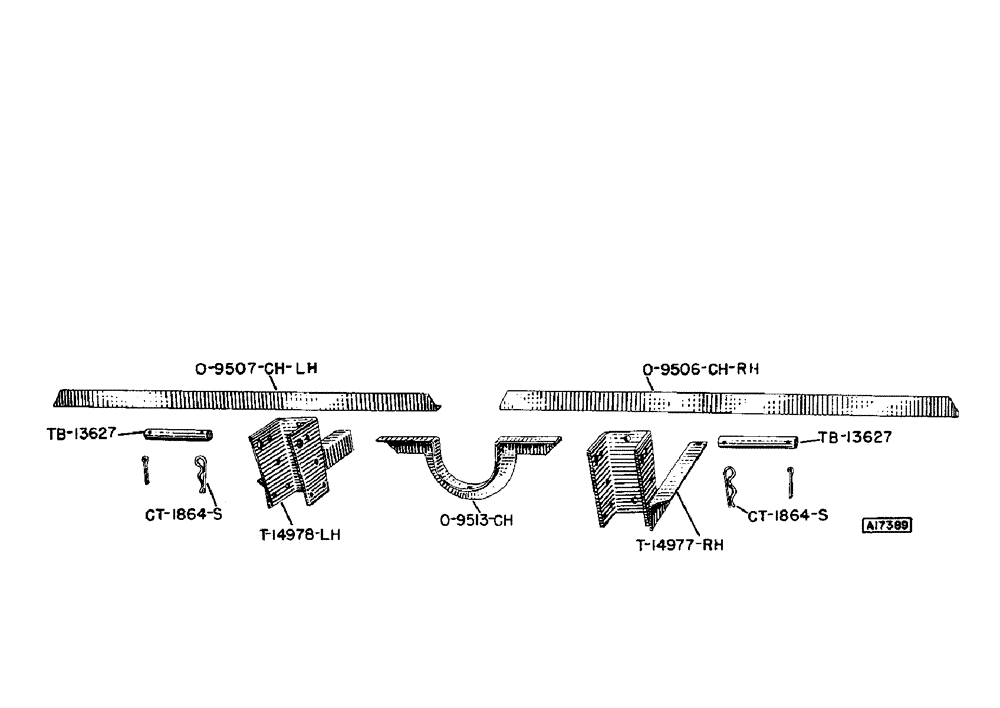

Запчасти Case IH 602 (006) - HITCH BRACKETS AND FRONT ANGLES, 602

TB13627

PIN - hitch (7/8" rd. x 5-15/16") (YR. 56-)

2шт.

3/16" X 1-3/4" COTTER PIN

2шт.

T14977

BRACKET - hitch R.H. (YR. 58-)

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

T14978

BRACKET - hitch L.H. (YR. 58-)

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

O9506CH

ANGLE - front cross member R.H. (YR. 54-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

1/4" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9507CH

ANGLE - front cross member L.H. (YR. 54-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

1/4" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9513CH

GUARD - P.T.O. tunnel sheet (YR. 54-)

1шт.

O9546CH

PIN - hitch (Use TB13627) (YR. 54-56)

1шт.

2158CHA

BRACKET - hitch R.H. (Use T14977) (YR. 54-58)

1шт.

2159CHA

BRACKET - hitch L.H. (Use T14978) (YR. 54-58)

1шт.

CT1864S

X

COTTER - hairpin, for hitch pin (Use T25682) (YR. 54-60)

2шт.

T25682

SPLIT PIN

COTTER - hairpin, for hitch pin (YR. 61-)

2шт.

SV2433

X

KLIK PIN - for O9546CH pin (YR. 54-56)

2шт.
