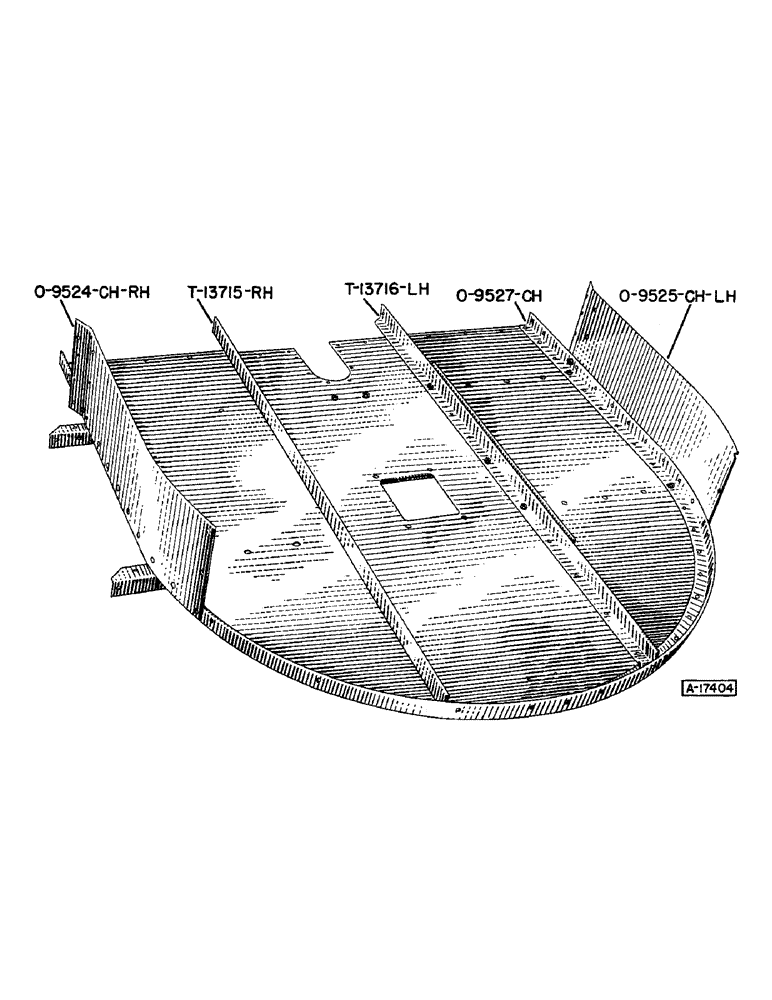

Запчасти Case IH 602 (011) - MAIN FRAME, BOTTOM SIDE, #602

T13715

ANGLE - gear box sill support R.H. (YR. 56-)

1шт.

T13716

ANGLE - gear box sill support L.H. (YR. 56-)

1шт.

O9524CH

SHEET - rotor side cover R.H. (YR. 54-)

1шт.

1/4" X 1/2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

5/16" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

1/4" X 5/8" W.B. HEAD RIVET

8шт.

O9525CH

SHEET - rotor side cover L.H. (YR. 54-)

1шт.

1/4" X 1/2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

5/16" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

1/4" X 5/8" W.B. HEAD RIVET

8шт.

O9527CH

ANGLE - main frame, outer (YR. 54-)

1шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

5/16" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

6шт.

2456CHA

ANGLE - gear box sill support R.H. (Use T13715) (YR. 54-56)

1шт.

2457CHA

ANGLE - gear box sill support L.H. (Use T13716) (YR. 54-56)

1шт.
