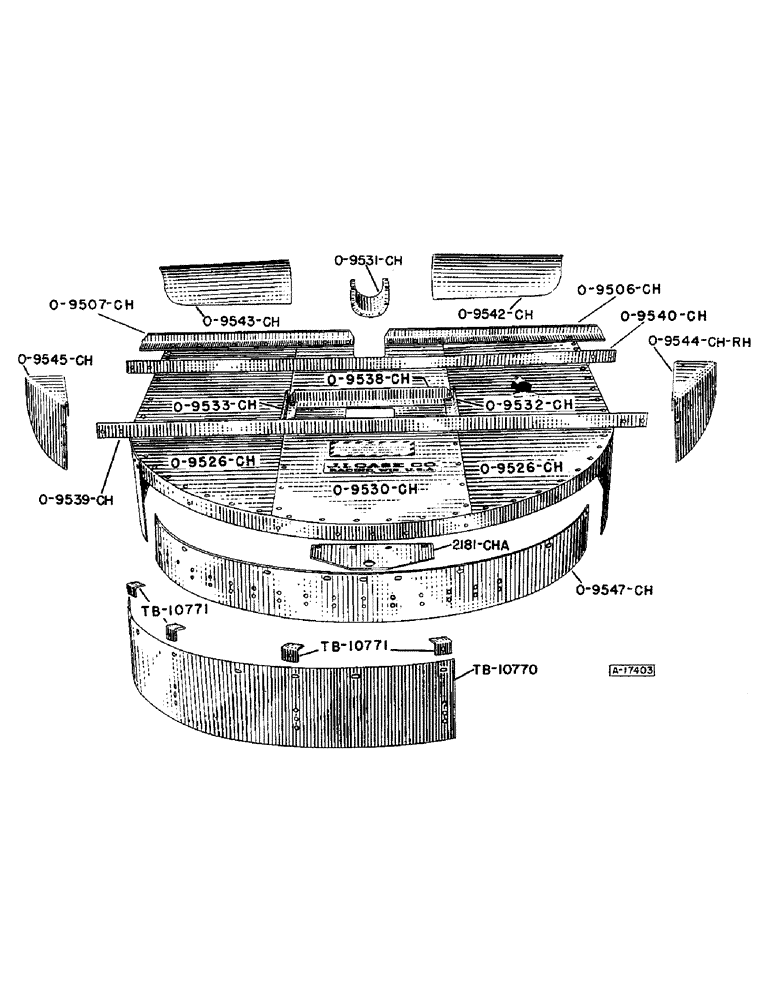

Запчасти Case IH 602 (010) - MAIN FRAME, TOP SIDE, #602

TB10770

SHIELD - stone (YR. 54-)

1шт.

TB10771

CLIP - angle, stone shield (YR. 54-)

4шт.

1" X 7/16" X #14 GA. WROT WASHER

4шт.

3/8" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

O9506CH

ANGLE - front cross member R.H. (YR. 54-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

1/4" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9507CH

ANGLE - front cross member L.H. (YR. 54-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

1/4" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

3/8" X 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9526CH

COVER - rotor, outside section (YR. 54-)

2шт.

1/4" X 5/8" W.B. HEAD RIVETS

30шт.

O9530CH

COVER - rotor, middle section (YR. 54-)

1шт.

1/4" X 5/8" W.B. HEAD RIVETS

12шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

O9531CH

SHEET - tunnel, for P.T.O. (YR. 54-)

1шт.

1/4" X 1/2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

6шт.

O9532CH

ANGLE - mast brace support R.H. (YR. 54-)

1шт.

3/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

O9533CH

ANGLE - mast brace support L.H. (YR. 54-)

1шт.

3/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

O9538CH

ANGLE - gear box support, front (YR. 54-)

1шт.

3/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

2шт.

195-2032

1 x 7/16" x 16 ga. washer

2шт.

O9539CH

ANGLE - gear box support, rear (YR. 54-)

1шт.

3/8" X 1-1/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

O9540CH

ANGLE - main frame, front (YR. 54-)

1шт.

1/4" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

3/8" x 1" N.C. HEX. BOLT W/LOCKWASHER AND NUT

4шт.

O9542CH

DEFLECTOR - stalk R.H. (YR. 54-)

1шт.

O9543CH

DEFLECTOR - stalk L.H. (YR. 54-)

1шт.

O9544CH

SHEET - flare R.H. (YR. 54-)

1шт.

5/16" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9545CH

SHEET - flare L.H. (YR. 54-)

1шт.

5/16" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

3шт.

O9547CH

STRIP - stone shield support (YR. 54-)

1шт.

1" X 7/16" #14 GA. WROT WASHERS

7шт.

3/8" X 3/4" N.C. HEX. BOLT W/LOCKWASHER AND NUT

7шт.

2167CHA

COVER - rotor top, middle section (Use O9530CH and O9531CH) (YR. 1954)

1шт.

2181CHA

HITCH - rear attachment (YR. 54-)

1шт.
