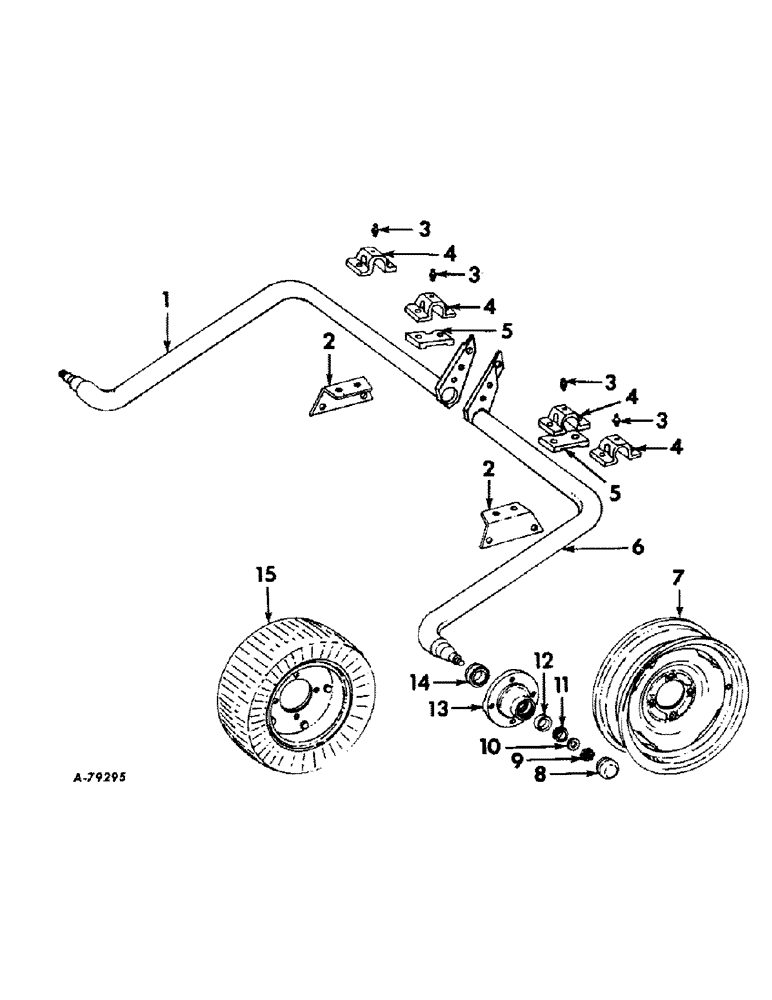

Запчасти Case IH 510 (G-08) - AXLE, WHEELS AND PUNCTURE-PROOF TIRE

1

470865R21

AXLE ASSY, LH

1шт.

.

NUT, 1/2-13 cd or zn-pltd hex

2шт.

.

SCREW, 1/2-13 cd or zn-pltd hex-hd cap

2шт.

.

WASHER, 1/2 cd or zn-pltd lock

2шт.

2

470051R1

PLATE, axle

2шт.

.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd or zn-pltd hex. lock

4шт.

.

NUT, 5/8-11 cd or zn-pltd hex.

4шт.

.

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

.

SCREW, 5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap

4шт.

.

WASHER, 5/8 cd or zn-pltd lock

4шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tapping lub

4шт.

4

470869R1

CLAMP, axle retaining

4шт.

.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd or zn-pltd lock

4шт.

.

SCREW, 1/2-13 cd or zn-pltd hex-hd cap

4шт.

5

470870R1

SPACER, center axle clamp

2шт.

6

470866R21

AXLE ASSY, RH

1шт.

7

662994R91

WHEEL

RIM, wheel, 15 x 4J

2шт.

.

TIRE, rib tread pneumatic implement, 5.90-15, 6.40-15 or 6.70, 15

2шт.

7

463036R1

WHEEL (STEERING)

RIM, wheel, 14 x 5KB, special

2шт.

.

TIRE, rib tread pneumatic implement, 7.50 x 14 or 8.00 x 14

1шт.

8

651194R1

CAP

wheel hub

2шт.

9

69442D

NUT

3/4-18 slt, jam

2шт.

.

PIN, 1/8 x 1-1/4 cot.

2шт.

10

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer roller bearing

2шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

651814R1

BEARING CUP

CUP, outer roller bearing

2шт.

13

465492R2

HUB

wheel

2шт.

.

663000R1

BOLT,1/2" - 20 x 1 1/32"

plated wheel

8шт.

14

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL ASSY, inner roller

2шт.

15

469413R91

RIM W/PUNCTURE PROOF TIRE 6.00X9, special

2шт.

.

NUT, 3/8-16 cd or zn-pltd hex.

8шт.

.

SCREW, 3/8-16 x 3/4 cd or zn-pltd hex-hd cap

8шт.

.

WASHER, 3/8 cd or zn-pltd lock

8шт.
