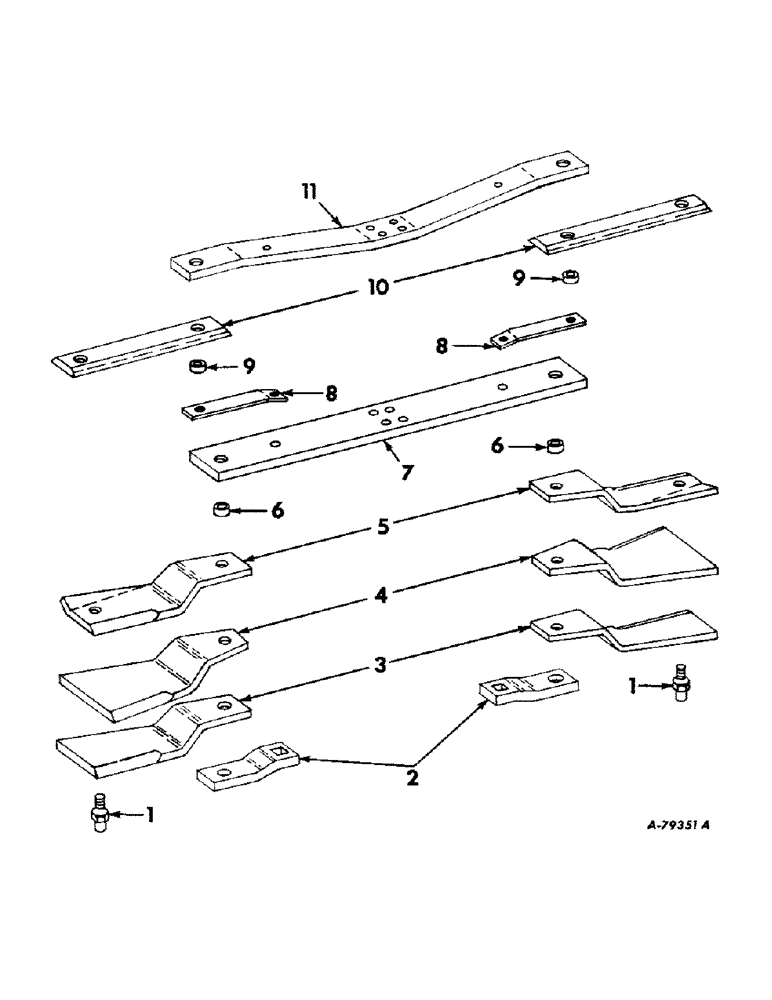

Запчасти Case IH 510 (G-07) - ROTARY BLADES AND SHREDDING ATTACHMENT

1

663049R91

SPIKE, pickup, special

1шт.

19368R1

PIN,5/32" x 1", Coiled

2шт.

23471S

WASHER

25/32 x 1-1/2 x 7 ga.

2шт.

2

478741R91

STRAP

HAMMERSTRAPS, matched pair of rotor bar

1шт.

296846R1

CARRIAGE BOLT,#3, 3/4" - 10 x 2 3/4", Gr 5

BOLT, 3/4-10 x 2-3/4 no. 3 plow type 2

2шт.

323670R1

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT, 1 x 3-1/2 no. 3 plow hd plow type 2

2шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 ESNA stop

2шт.

19613R1

LOCK NUT,1"-8

NUT, 1 ESNA stop

2шт.

3

469796R91

HALF BLADE

BLADE, half trapezoid, pair, regular

1шт.

4

469797R91

BLADE, full trapezoid, pair, special

1шт.

5

472130R92

BLADE, half trapezoid, pair suction, special

1шт.

5

477830R91

BLADE

suction, pair, special

1шт.

6

469377R1

BUSHING

swinging blade

2шт.

7

470017R1

BAR, rotor, long 5 in. wide

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 ESNA stop

4шт.

SCREW, 3/4 x 2-1/2 hex-hd cap

4шт.

8

663979R1

HAMMERSTRAP, rotor, special for shredding

2шт.

9

659622R1

SPACER

BUSHING, swinging blade, special for shredding

2шт.

10

660369R11

BLADE

flat swing, pair, special for shredding

2шт.

11

663972R1

BAR, rotor, special for shredding

1шт.

17036R1

BOLT,Plow, #3, 3/4" x 2 3/4"

3/4 x 2-3/4 no. 3 plow

2шт.

460869R1

NUT, 1/2-13 hex. lock

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. lock

2шт.

18444R1

NUT,3/4"-10, GB

3/4-10 ESNA stop

4шт.

SCREW, 1/2-13 hex-hd cap

2шт.

SCREW, 3/4-10 x 3-1/2 hex-hd cap

4шт.

WASHER, 1/2 med lock

2шт.

WASHER, 3/4 med lock

2шт.
