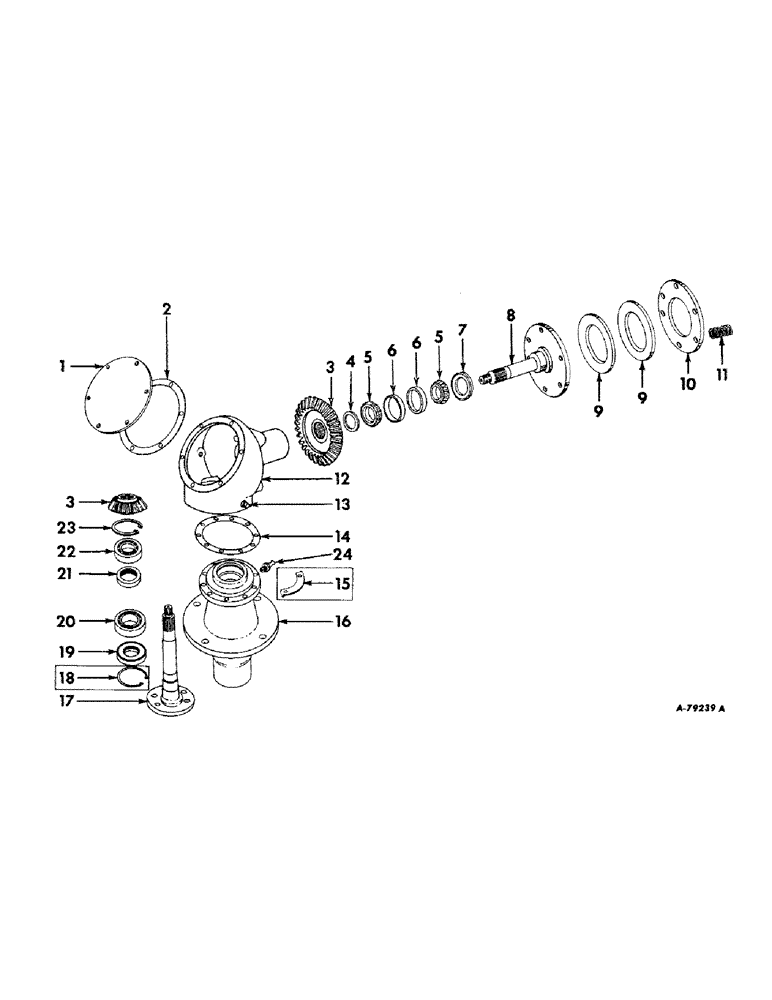

Запчасти Case IH 510 (G-05) - MAIN DRIVE

1

663596R1

COVER, main gear housing

1шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

6шт.

WASHER, 5/16 med lock

6шт.

2

663607R1

GASKET

gear case cover

1шт.

3

470015R1

GEAR, input drive bevel, 20 T

2шт.

4

663604R1

SHIM

gear case, heavy

2шт.

4

663605R1

SHIM

gear case, medium

2шт.

4

663606R1

SHIM

gear case light

2шт.

5

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE ASSY, gear case bearing

2шт.

6

378157R91

OIL RESERVOIR

SEAL, gear case oil

1шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Gear case

2шт.

8

460321R12

SHAFT

ASSY, input

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

PIN, 1/8 x 1-1/2 cot.

1шт.

453599R1

WASHER

29/32 x 2 x 1/4

1шт.

9

474599R1

FACING

clutch

2шт.

10

460498R1

RETAINER

PLATE, clutch floating

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

6шт.

SCREW, 3/8-16 x 3-1/4 hex-hd cap

6шт.

575807R1

WASHER

13/32 x 1 x 11 ga

6шт.

11

M14033

SPRING

compression

6шт.

12

478800R1

HOUSING, upper gear

1шт.

PIN, 1/8 x 1-1/4 cot.

1шт.

13

103867

PLUG

3/8 sq-hd pipe

2шт.

14

478801R1

SHIM, lower shaft housing, .020

2шт.

14

478802R1

SHIM

lower shaft housing, .007

2шт.

14

478803R1

SHIM

lower shaft housing, .005

2шт.

15

470016R1

LOCK, bolt, 1963 & 64, order five bolts, 338979R1 and five washers, 103328

1шт.

16

469249R2

HOUSING, lower shaft

1шт.

362441R1

SCREW,Hex, 7/16"-14 x 1 1/2", G8

7/16-14 x 1-1/2 type 4 hex-hd cap

10шт.

18444R1

NUT,3/4"-10, GB

3/4-16 stop

4шт.

52590D

BOLT

SCREW, 3/4-16 x 2-1/2 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

7/16"

20шт.

62177V

WASHER

25/32 x 1-1/2 x .188, 1962, 1964

2шт.

17

469251R1

SHAFT, lower

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

PIN, 1/8 x 1-1/2 cot.

1шт.

493814R1

WASHER, 29/32 x 2 x 1/4

1шт.

18

12125

SNAP RING

Ring, Snap, , lower shaft, 1963 & 64 3.562", Int, #354

1шт.

19

660432R91

OIL SEAL

SEAL, lower shaft oil

1шт.

20

478799R91

BEARING

lower shaft ball

1шт.

21

659675R91

OIL SEAL

SEAL, lower shaft oil

1шт.

22

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BEARING, lower shaft upper ball

1шт.

23

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , lower shaft upper 3.156", Int, #315

1шт.

24

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str lub, 1964 and since

1шт.
