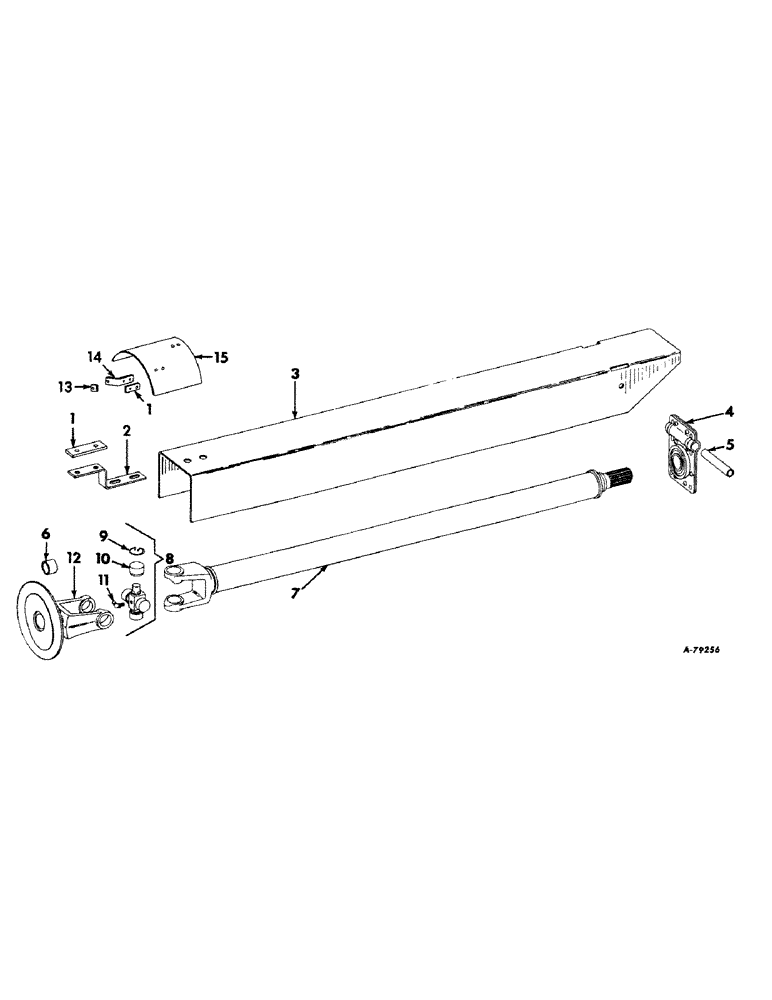

Запчасти Case IH 510 (G-11) - REAR POWER DRIVE AND SHIELD, ROCKWELL STANDARD

1

469913R1

SPACER, rubber

4шт.

2

469384R1

CLIP, slip clutch shield

1шт.

3

470032R11

SHIELD W/PRODUCT GRAPHIC, input drive

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

4шт.

SCREW, 3/8-16 x 1-1/4 cd or zn-pltd hex-hd cap

2шт.

SCREW, 3/8 x 1 C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd or zn-pltd

4шт.

4

ST669

BEARING ASSY,35mm ID

BEARING, pedestal ball

1шт.

5

463580R1

SPACER,1/2" Pipe x 4.109"

PTO

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

6

460538R1

BUSHING

bronze (replaces 460532R1)

1шт.

7

470067R91

TUBE W/YOKE AND SPLINE, tubular

1шт.

8

660116R91

NUT

CENTER CROSS ASSY

1шт.

9

495962R1

RING

snap

4шт.

10

661671R91

JOINT

BEARING ASSY, needle

4шт.

11

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

12

466382R11

YOKE W/BUSHING ASSY, flanged

1шт.

13

471111R1

PAD

SPACER, rubber

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

4шт.

SCREW, 3/8-16 x 1 hex-hd cap

4шт.

14

469383R1

BRACKET, slip clutch shield

2шт.

BOLT, 1/2-13 x 1 sq-hd mach

2шт.

478359R1

RETAINER, bolt

2шт.

15

469382R1

SHIELD W/PRODUCT GRAPHIC, slip clutch

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

2шт.

SCREW, 3/8-16 x 1 cd or zn-pltd hex-hd cap

2шт.
