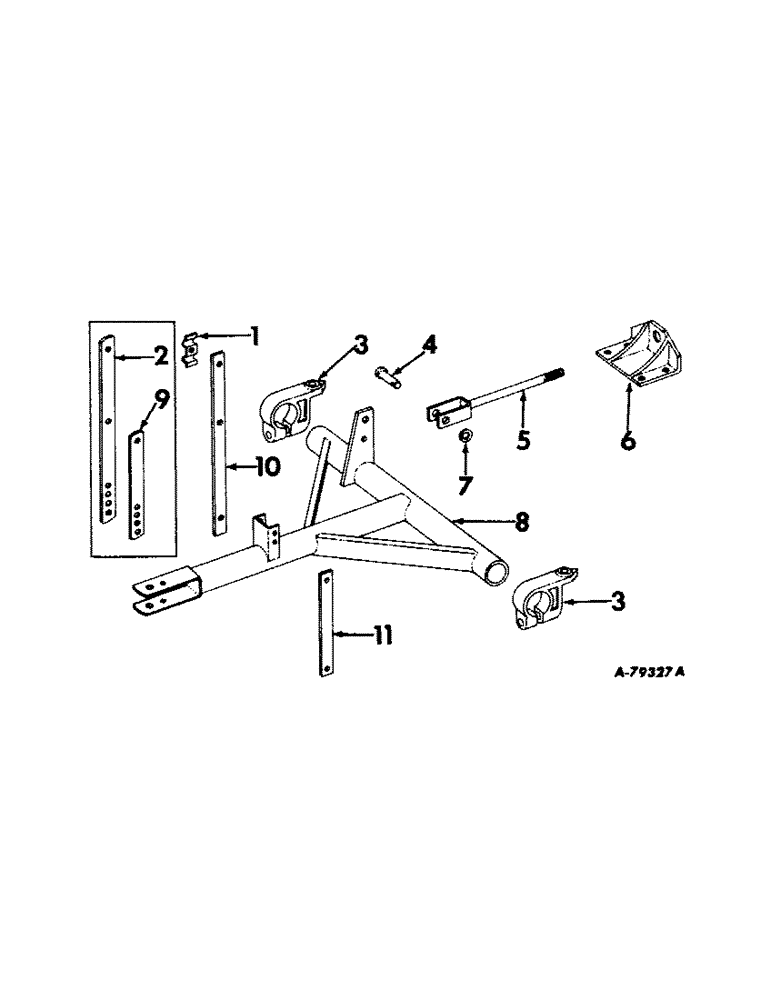

Запчасти Case IH 510 (G-09) - TONGUE AND HOSE SUPPORT

1

515030R1

CLAMP

hose

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

2

469381R1

SUPPORT, hydraulic hose, 1963 & 64

1шт.

3

470025R1

BRACKET, hitch

2шт.

NUT, 1/2-13 hex.

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.

SCREW, 1/2-13 hex-hd cap

2шт.

SCREW, 5/8-11 cd or zn-pltd hex-hd cap

2шт.

WASHER, 1/2 med lock

2шт.

127506H

WASHER, 17/32 x 1 x 16 ga 6

1шт.

4

Q1394

PIN, 3/4 x 2-3/8 dld-std-hd

1шт.

5

470873R11

CLEVIS ASSY, hitch adjusting

1шт.

NUT, 1-8 hex.

2шт.

PIN, 1/4 x 1-1/2 cot.

1шт.

WASHER, 1 in. med lock

1шт.

6

470872R1

BRACKET, hitch adjusting

1шт.

NUT, 3/4-10 hex.

4шт.

SCREW, 3/4-10 x 1-3/4 hex-hd cap

4шт.

WASHER, 3/4 med lock

4шт.

7

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

8

470018R12

TONGUE ASSY, hitch

1шт.

9

469380R1

SUPPORT, PTO, 1963 & 64

1шт.

BOLT, 1/2-13 x 6 hex-hd mach

2шт.

NUT, 1/2-13 hex.

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

1шт.

10

478295R1

BAR, PTO bearing & hose support, 1964 & since

1шт.

BOLT, 1/2-13 x 6 hex-hd mach

2шт.

NUT, 1/2-13 hex.

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

1шт.

11

478294R1

BAR, PTO bearing support, 1964 & since

1шт.
