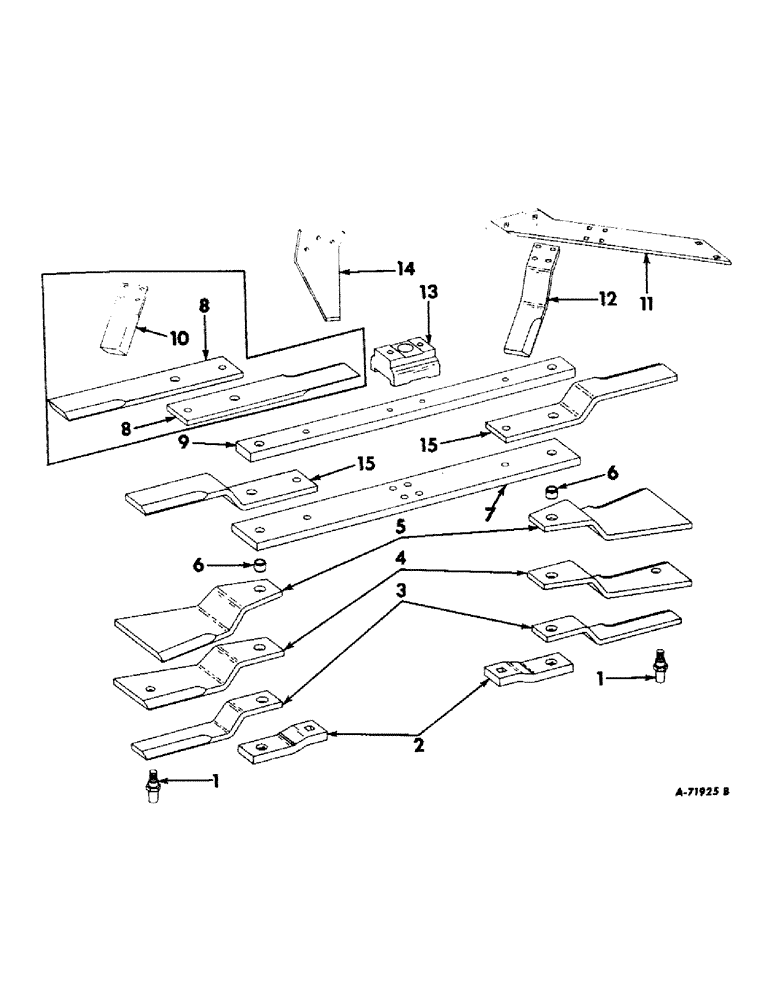

Запчасти Case IH 410 (F-09) - ROTARY BLADES AND SHREDDING ATTACHMENT

1

663049R91

SPIKE, pickup (special)

2шт.

19368R1

PIN,5/32" x 1", Coiled

2шт.

23471S

WASHER

25/32 x 1-1/2" x 7 ga.

2шт.

2

478741R91

STRAP

HAMMERSTRAPS, match pair of (rotor bar)

1шт.

321350R1

BOLT,#3, 3/4" - 10 x 3"

3/4 x 2-3/4" no. 3 hd. plow bolt

2шт.

323670R1

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT, 1 x 3-1/2" no. 3 hd. plow

2шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4" ESNA stop

2шт.

19613R1

LOCK NUT,1"-8

NUT, 1" ESNA stop

2шт.

3

469798R91

BLADE

straight (pair) (unit A)

1шт.

3

477830R91

BLADE

(suction) (pair) (regular for unit A, special for unit B) (replaces 479830R91)

1шт.

4

469769R91

BLADE, half-trapezoid (pair) (special for unit A, regular for unit B)

1шт.

4

472130R92

BLADE, half-trapezoid (suction) (pair) (special)

1шт.

5

469797R91

BLADE, full-trapezoid (pair) (special for unit B)

1шт.

6

469377R1

BUSHING

swinging blade

2шт.

7

469379R1

BAR, rotor (unit B)

1шт.

18444R1

NUT,3/4"-10, GB

3/4" ESNA stop

4шт.

SCREW, 3/4 x 2-1/2" cap

4шт.

8

469359R1

KNIFE, rigid (special for shredding unit B) (1962)

2шт.

326223R1

BOLT (SPREADER),#3, 3/4" - 10 x 3 1/2"

BOLT, 3/4 x 3-1/4" no. 3 hd-plow

2шт.

611611C1

BOLT (SPREADER)

BOLT, 1 x 4-1/2" no. 3 hd-plow

2шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4" ESNA stop

2шт.

18863R1

NUT,1"-8, G5

1" ESNA stop

2шт.

9

469375R1

BAR, rotor (unit A)

1шт.

19441R1

LOCK NUT,5/8"-11, GB

NUT, 5/8" ESNA stop

2шт.

SCREW, 5/8 x 2-1/2" cap

2шт.

10

469338R1

KNIFE, stationary (special for shredding) (1962)

1шт.

11

469799R1

BRACKET, stationary knife (special for shredding)

1шт.

BOLT W/NUT, 3/8 x 1-1/2" crg

4шт.

BOLT W/NUT, 1/2 x 1" crg

4шт.

WASHER, 3/8" lock

4шт.

WASHER, 1/2" lock

4шт.

12

472791R1

KNIFE, stationary offset corner (63- )

1шт.

13

472794R1

SPACER, rotor bar (unit A) (63- )

1шт.

19441R1

LOCK NUT,5/8"-11, GB

NUT, 5/8" ESNA stop

2шт.

SCREW, 5/8 x 4" cap

2шт.

14

472793R1

KNIFE

side mounting shredding (63- ) (special for shredding)

1шт.

NUT, 1/2"

3шт.

SCREW, 1/2 x 1-1/4" cap

1шт.

SCREW, 1/2 x 1-1/2" cap

2шт.

WASHER, 1/2" lock

3шт.

15

472776R91

KNIFE, rigid offset (pair) (63- )

1шт.

326223R1

BOLT (SPREADER),#3, 3/4" - 10 x 3 1/2"

BOLT, 3/4 x 3-1/4" no. 3 hd plow

2шт.

611611C1

BOLT (SPREADER)

BOLT, 1 x 4-1/2" no. 3 hd plow

2шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4" ESNA stop

2шт.

18863R1

NUT,1"-8, G5

1" ESNA stop

2шт.
