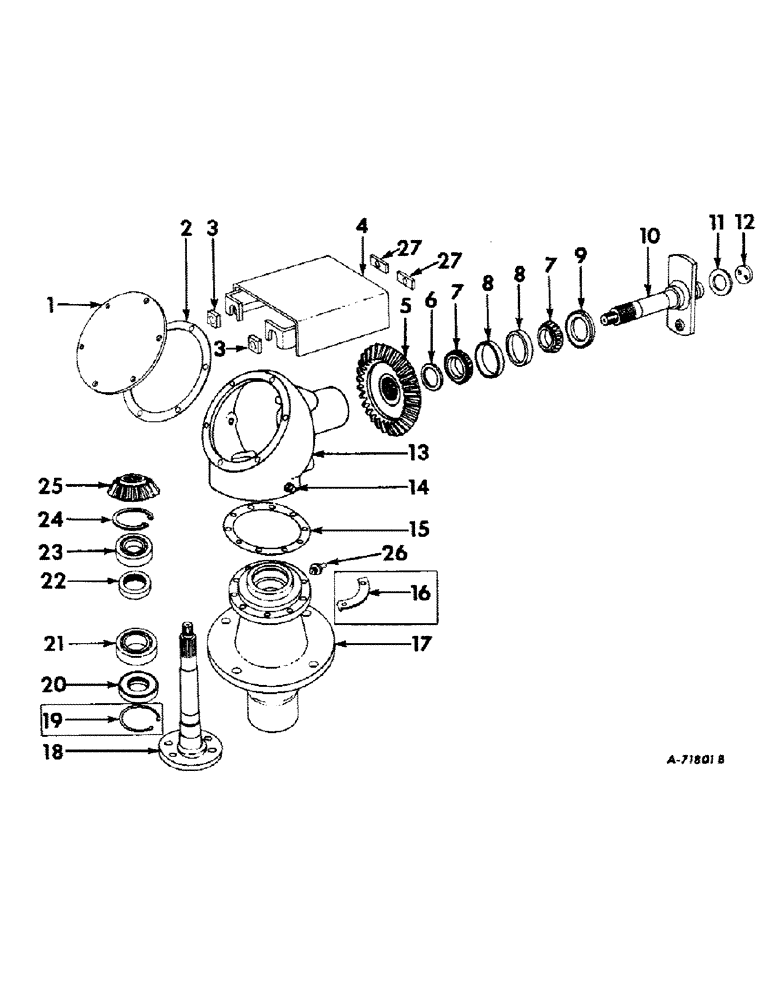

Запчасти Case IH 410 (F-08) - MAIN DRIVE (FOR 410)

1

663596R1

COVER, main gear housing

1шт.

BOLT, 5/16 x 3/4" mach

6шт.

WASHER, 5/16" lock

6шт.

2

663607R1

GASKET

gear case cover

1шт.

3

471111R1

PAD

SPACER, rubber

2шт.

4

469400R91

SHIELD ASSY, shear bolt

1шт.

BOLT, 1/2 x 1" sq. hd mach

2шт.

478359R1

RETAINER bolt

2шт.

5

469248R2

GEAR, bevel drive (20-T) (for 540 RPM-PTO)

1шт.

5

469392R2

GEAR

bevel drive (15-T) (for 1000 RPM-PTO)

1шт.

6

663604R1

SHIM

gear case (heavy)

2шт.

6

663605R1

SHIM

gear case (medium)

2шт.

6

663606R1

SHIM

gear case (light)

2шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, gear case bearing

2шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Gear case

2шт.

9

378157R91

OIL RESERVOIR

OIL SEAL, gear case

1шт.

10

469393R91

SHAFT ASSY, horizontal

1шт.

17522R11

BOLT

W/NUT, 7/16 x 2" mach (shear bolt)

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 NF slt

1шт.

PIN, 1/8 x 1-1/2" cotter pin

1шт.

SCREW 5/16 UNF x 3/4" cap

2шт.

WASHER 5/16" lock

2шт.

WASHER, 7/16" lock

1шт.

453599R1

WASHER

29/32 x 2 x 1/4"

1шт.

11

659625R1

WASHER

wear

1шт.

12

659623R1

WASHER, drive shaft

1шт.

13

478800R1

HOUSING, main gear

1шт.

495538R1

PLUG, 3/8" recessed

1шт.

PIN, 1/8 x 1-1/4" cotter

1шт.

14

103867

PLUG

3/8" sq-hd

1шт.

15

478801R1

SHIM, barrel case (.020") (heavy)

2шт.

478800R1

SHIM, barrel case (.007") (medium)

2шт.

478803R1

SHIM

barrel case (.005) light

2шт.

16

470016R1

LOCK, bolt (order 5 bolts, 338979R1 and 5 washer, 103328) (1962- 64)

1шт.

17

469249R2

HOUSING, lower shaft

1шт.

338979R1

BOLT, 7/16 x 1-1/2" twelve-pt

10шт.

NUT, ESNA stop

4шт.

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4 x 2-1/2" cap

4шт.

WASHER, 7/16" hv lock washer

10шт.

62177V

WASHER

25/32 x 1-1/2 x .188

2шт.

18

469251R1

SHAFT, lower

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 UNF slotted

1шт.

PIN, 1/8 x 1-1/2" cotter

1шт.

453599R1

WASHER

29/32 x 2 x 1/4"

1шт.

19

12125

SNAP RING

Ring, Snap, , lower shaft, 1962-64 3.562", Int, #354

1шт.

20

660432R91

OIL SEAL

OIL SEAL, lower shaft

1шт.

21

478799R91

BEARING

lower shaft lower

1шт.

22

659675R91

OIL SEAL

OIL SEAL, lower shaft

1шт.

23

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BEARING, lower shaft-upper

1шт.

24

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , lower shaft-upper 3.156", Int, #315

1шт.

25

469392R2

GEAR

driven bolt bevel (15-T) (for 540 RPM-PTO)

1шт.

25

469248R2

GEAR, driven bevel (20-T) (for 1000 RPM-PTO)

1шт.

26

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self tap. straight lubrication (1964- )

1шт.

27

478359R1

RETAINER, bolt

2шт.
