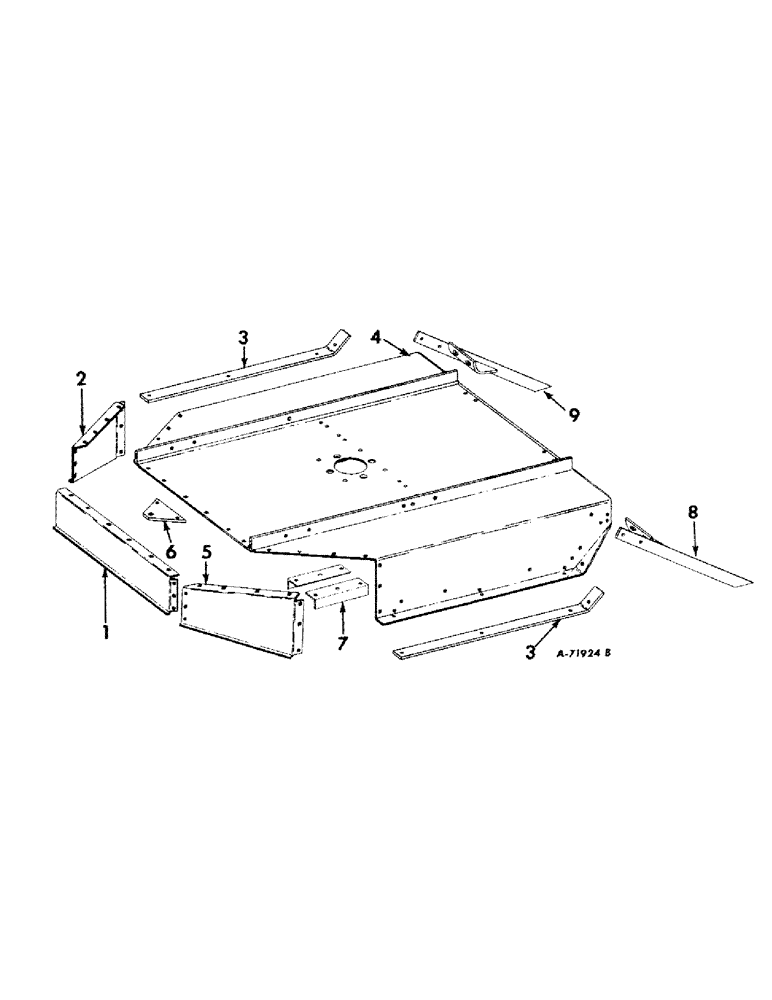

Запчасти Case IH 410 (F-06) - MAIN FRAME (FOR 410), HARROW HITCH ATTACHMENT (FOR 410), WEAR RUNNER ATTACHMENT (FOR 410)

1

469231R1

SHEET, back

1шт.

BOLT W/NUT, 3/8 x 1" crg

4шт.

BOLT W/NUT, 1/2 x 1" crg

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

2

469229R1

SHEET, angle side LH

1шт.

BOLT W/NUT, 3/8 x 1" crg

5шт.

BOLT W/NUT, 1/2 x 1-1/4" crg

3шт.

NUT, 3/8"

2шт.

SCREW, 3/8 x 1" cap

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

7шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

3

469309R1

RUNNER, abrasion resistant (special)

2шт.

SCREW, 3/8 x 3/4" cap

8шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

8шт.

4

478805R92

BOX ASSY, cutter (for machines built 1962-64, also order package 478834R91)

1шт.

5

469230R1

SHEET, angle side RH

1шт.

BOLT W/NUT, 3/8 x 1" crg

5шт.

BOLT W/NUT, 1/2 x 1-1/4" crg

3шт.

NUT, 3/8"

2шт.

SCREW, 3/8 x 1" cap

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

7шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

6

469398R1

PLATE, harrow hitch (special)

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 1-1/2" cap

2шт.

WASHER, LOCK, 1/2"

2шт.

7

478796R1

ANGLE, cutter box reinforcement (1964- )

2шт.

NUT, 1/2"

4шт.

SCREW, 1/2 x 1-1/4" cap

4шт.

WASHER, 1/2" lock

4шт.

8

480287R91

FINGER ASSY, pickup RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

9

480286R91

FINGER ASSY, pickup LH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

478834R91

PACKAGE, cutter box reinforcing parts (1962-64), consists of (2) angle 478496R1, (4) nut 102637, (4) screw 179883, (2) screw 271613, (4) washer 103323, (2) washer 62177V)

1шт.
