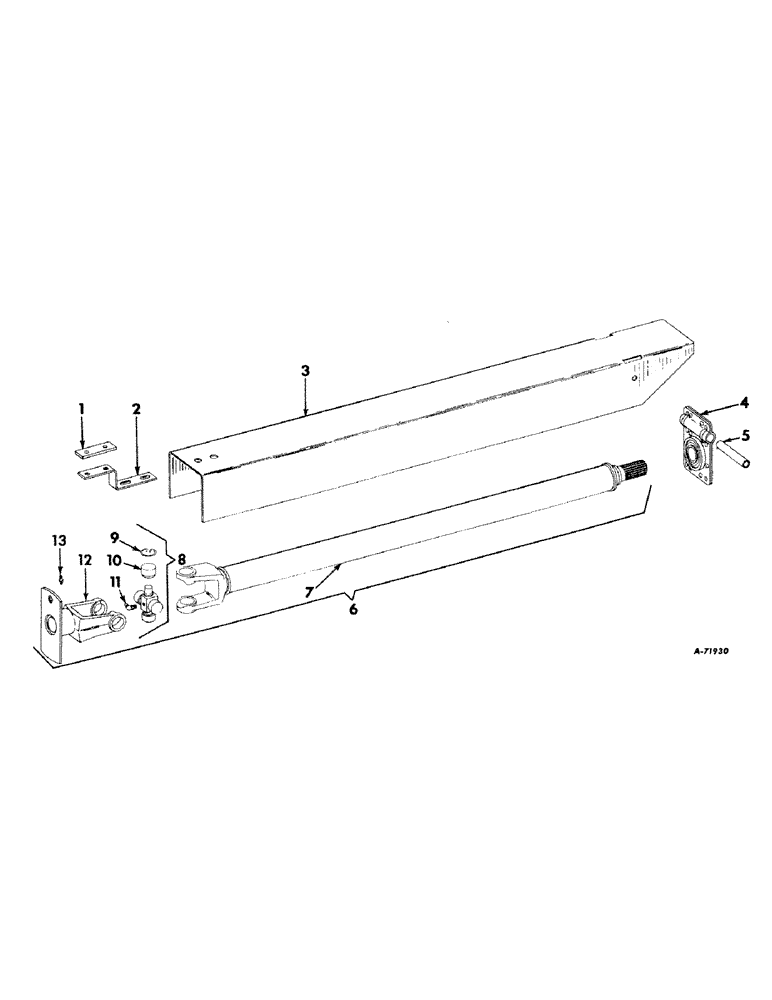

Запчасти Case IH 410 (F-20) - POWER DRIVE EQUIPMENT (ROCKWELL STANDARD), (FOR TRAILING TYPE)

1

469913R1

SPACER, rubber

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8" lock

4шт.

SCREW, 3/8 x 1" C or Z cap

2шт.

SCREW, 3/8 x 1-1/4" C or Z cap

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd or zn-pltd lock

4шт.

2

469384R1

CLIP, slip clutch shield

1шт.

3

469385R11

SHIELD W/PRODUCT GRAPHICS, input drive

1шт.

4

ST669

BEARING ASSY,35mm ID

hanger

1шт.

5

463580R1

SPACER,1/2" Pipe x 4.109"

hanger bearing

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

6

SHAFT ASSY, rear drive

1шт.

7

469439R1

TUBE W/YOKE AND SPLINE, tubular

1шт.

For use with 310 rotary cutter with shear bolt drive

1шт.

For use with 310 rotary cutter with slip clutch drive

1шт.

7

469439R1

TUBE W/YOKE AND SPLINE, tubular

1шт.

For use with 310 rotary cutter with shear bolt drive

1шт.

For use with 310 rotary cutter with slip clutch drive

1шт.

7

469434R1

TUBE W/YOKE AND SPLINE, tubular

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

8

569047R91

REPAIR KIT

CENTER CROSS ASSY

1шт.

For use with 310 rotary cutter with shear bolt drive

1шт.

For use with 310 rotary cutter with slip clutch drive

1шт.

8

660116R91

NUT

CENTER CROSS ASSY

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

9

576420R1

RING

SNAP RING

4шт.

For use with 310 rotary cutter with shear bolt drive

1шт.

For use with 310 rotary cutter with slip clutch drive

1шт.

9

495962R1

RING

SNAP RING

4шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

10

569044R91

BEARING ASSY

ASSY, needle

4шт.

For use with 310 rotary cutter with shear bolt drive

1шт.

For use with 310 rotary cutter with slip clutch drive

1шт.

10

661671R91

JOINT

BEARING ASSY, needle

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

11

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-65 degree elbow lubrication

1шт.

12

664030R91

YOKE

W/PLATE, flanged

1шт.

For use with 310 rotary cutter with shear bolt drive

1шт.

12

460614R21

YOKE

W/PLATE AND BUSHING, (refer to slip clutch for illustration)

1шт.

For use with 310 rotary cutter with slip clutch drive

1шт.

12

469431R91

YOKE W/PLATE, flanged

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

12

466382R11

YOKE W/PLATE AND BUSHING, (refer to slip clutch for illustration)

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

13

102467H

FITTING

1/4" straight lubrication

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 310 rotary cutter with shear bolt drive

1шт.
