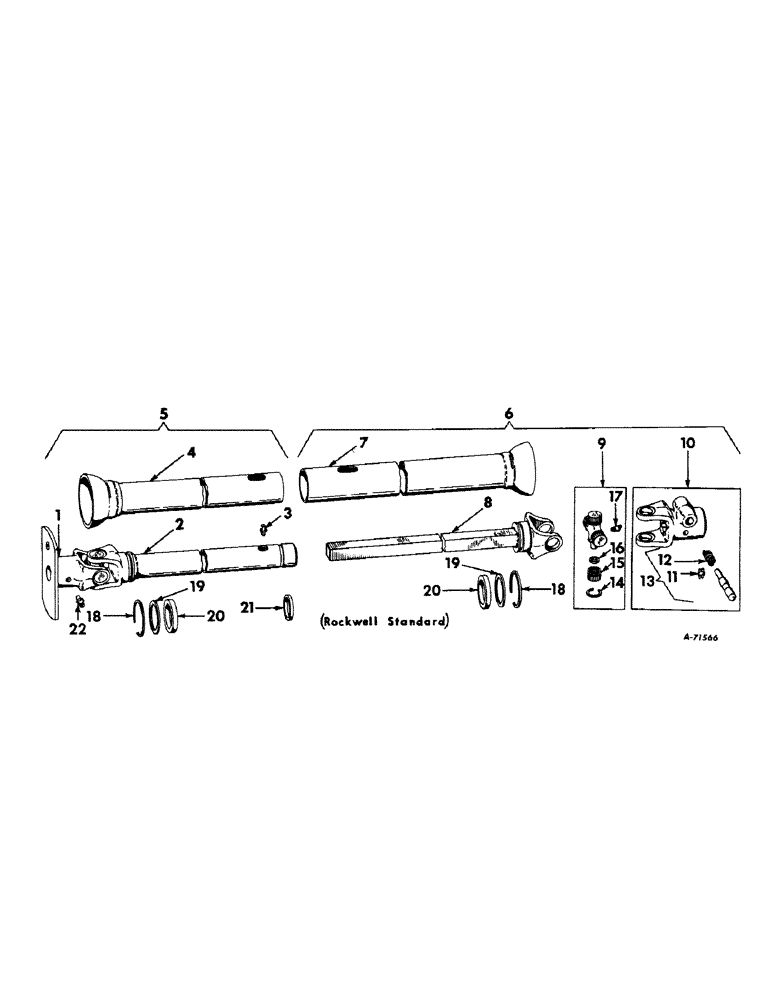

Запчасти Case IH 410 (F-17) - POWER DRIVE EQUIPMENT (ROCKWELL STANDARD), (FOR TWO OR THREE-POINT HITCH)

1

664030R91

YOKE

W/PLATE, flanged

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

1

460614R21

YOKE

W/PLATE, flanged (refer to slip clutch for illustration)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

1

469431R91

YOKE W/PLATE, flanged

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

1

469418R11

YOKE W/PLATE AND BUSHING, flanged (refer to slip clutch for illustration)

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

2

465168R91

YOKE W/SLEEVE ASSY, tube

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

2

469417R1

YOKE W/SLEEVE ASSY, tube

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4" straight lubrication

1шт.

4

465170R91

SHIELD, inner

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

4

469416R1

SHIELD, inner

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

5

469347R91

JOINT ASSY, rear half of double universal (implement end)

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

5

465943R91

JOINT ASSY, rear half of double universal (implement end)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

5

469347R91

JOINT ASSY, rear half of double universal (implement end)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

5

469350R91

JOINT ASSY, rear half of double universal (implement end)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

6

467325R91

JOINT ASSY, from half of double universal (tractor end)

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

6

473179R91

JOINT ASSY, front half of double universal (tractor end) (for 1000 RPM-PTO)

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

6

469346R91

JOINT ASSY, front half of double universal (tractor end)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

6

473182R91

JOINT ASSY, front half of double universal (tractor end) (for 1000 RPM-PTO)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

7

467327R1

SHIELD, outer

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

7

469414R1

SHIELD, outer

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

7

473509R1

SHIELD, outer (for 1000 RPM-PTO)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

8

467326R1

YOKE

W/SHAFT

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

8

469415R1

YOKE

W/SHAFT

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

8

473508R1

YOKE W/SHAFT (for 1000 RPM-PTO)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

9

569047R91

REPAIR KIT

CENTER CROSS ASSY

2шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

9

660116R91

NUT

CENTER CROSS ASSY

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

10

568100R92

YOKE

ASSY, quick detachable (1-3/8" spline)

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

10

472857R91

YOKE

ASSY, quick detachable (1-3/8" spline) (for 1000 RPM-PTO)

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

10

660484R21

FORK

YOKE ASSY, quick detachable (1-3/8" spline)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

10

583876R11

YOKE

ASSY, quick detachable (1-3/8" spline) (for 1000 RPM-PTO)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

12

587479R1

SPRING

locking pin (for 1000 RPM-PTO)

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

13

455346R21

PIN

W/SPRING AND X-WASHER, locking

1шт.

13

631976R91

PIN

W/SPRING AND X-WASHER, locking

1шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

14

576420R1

RING

SNAP RING

8шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

14

495962R1

RING

SNAP RING

1шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

15

569044R91

BEARING ASSY

ASSY, needle

8шт.

For use with 310 rotary cutter with shear bolt drive. (1962 to 1966)

1шт.

For use with 310 rotary cutter with slip clutch drive (1962 to 1966)

1шт.

15

661671R91

JOINT

BEARING ASSY, needle

8шт.

For use with 410 rotary cutter with shear bolt drive.

1шт.

For use with 410 rotary cutter with slip clutch drive.

1шт.

16

NOT USED

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 65 degree elbow lubrication

2шт.

18

613436R1

CLAMP

RING, shield retaining

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

SUPPORT, nylon

1шт.

22

102467H

FITTING

1/4" straight lubrication

1шт.
