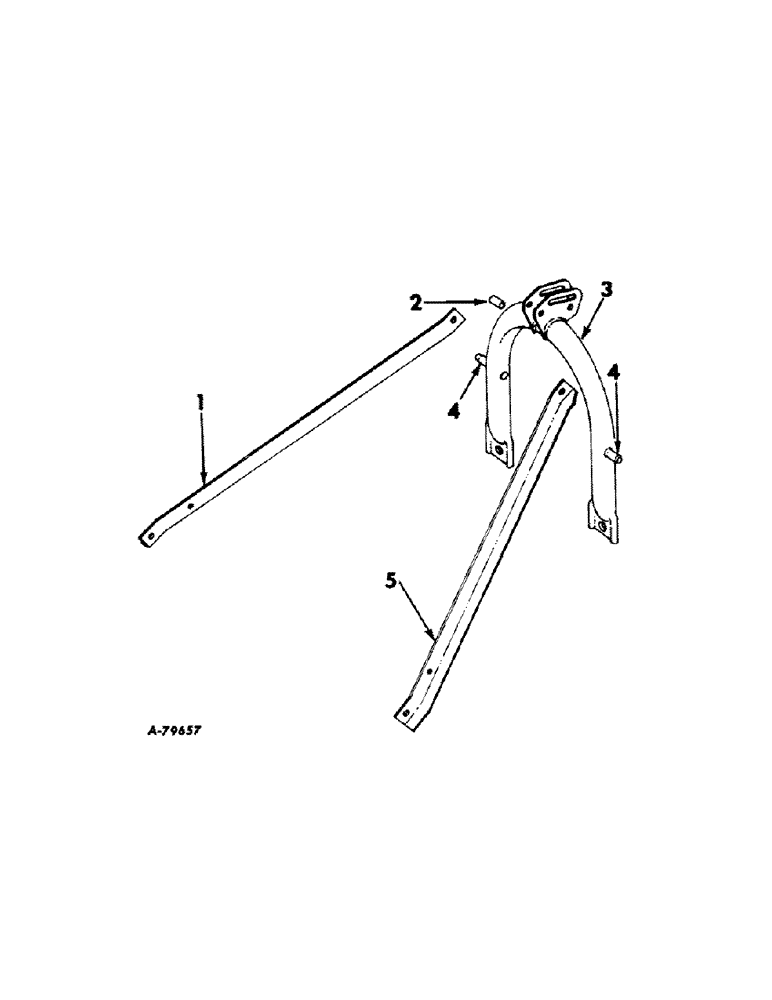

Запчасти Case IH 410 (F-14[A]) - THREE-POINT HITCH (1964- )

1

478098R1

BRACE, upper link left

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8-11 x 4 C-Z hex-hd mach

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

3шт.

Q5099

WASHER

25/32 x 1-3/4 x 11 ga.

1шт.

2

466606R1

SPACER, upper link

1шт.

3

478353R91

PIPE ASSY, hanger

1шт.

BOLT, 5/8 x 1-1/2" mach

2шт.

NUT, 5/8"

2шт.

WASHER, 5/8" lock

2шт.

Q5099

WASHER

25/32 x 1-3/4" x 11 ga

2шт.

4

469302R1

PIN, coupling beam (1962-1965)

1шт.

4

481614R1

PIN

link (1965 and since)

2шт.

NUT, 7/8-14 ESNA stop (for category I three point hitch)

2шт.

4

481615R1

PIN

link (1965 and since)

2шт.

NUT, 7/8-14 ESNA stop (for category II three point hitch)

2шт.

5

478099R1

BRACE, upper link right

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8-11 x 4 C-Z hex-hd mach

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

3шт.

Q5099

WASHER

25/32 x 1-3/4 x 11 ga.

1шт.
