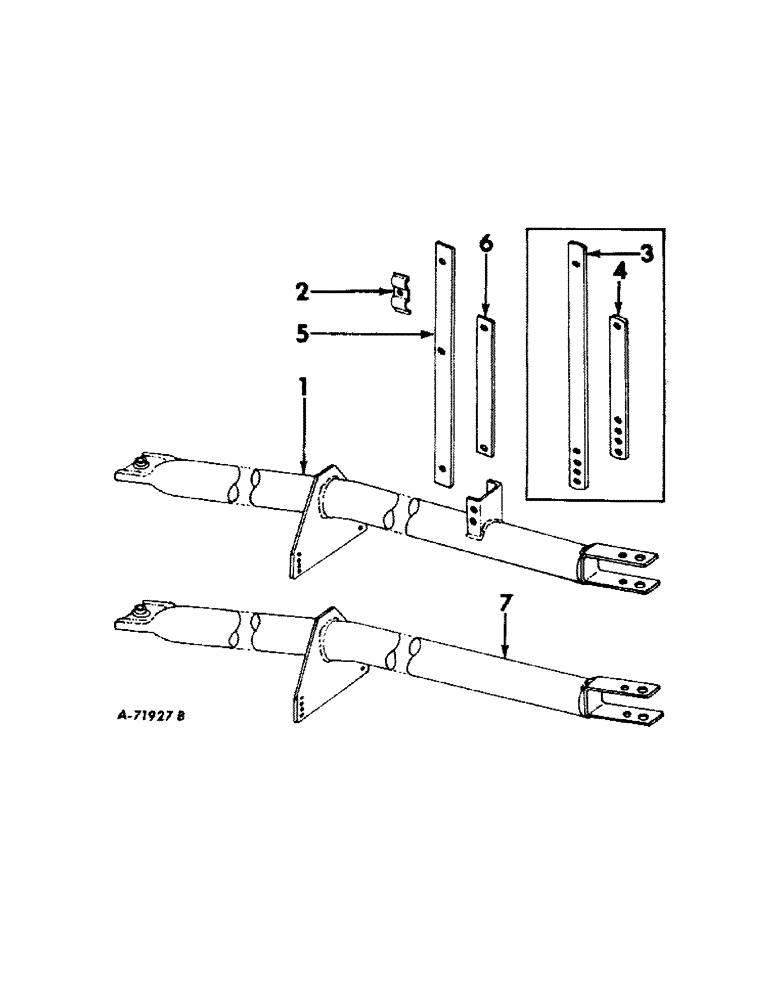

Запчасти Case IH 410 (F-12) - TONGUE (FOR TRAILING TYPE)

1

469270R12

TONGUE ASSY, hitch (3 knuckle)

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 ESNA lock

1шт.

2

515030R1

CLAMP

hose

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

1шт.

18817R1

BOLT,Hex, 1/2" - 13 x 6", Gr 2

1/2 x 6 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120328

NUT, 1/2-13 C-Z hex jam

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 cd-pltd nylon inset

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

3

469381R1

SUPPORT, pedestal bearing (1962-64)

1шт.

BOLT, 1/2 x 6" mach

2шт.

NUT, 1/2"

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2" ESNA stop

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

469380R1

SUPPORT, PTO (1962-64)

1шт.

5

478295R1

BAR, PTO hanger and hose support (1964- )

1шт.

BOLT, 1/2 x 6" mach

2шт.

NUT, 1/2"

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2" ESNA stop

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

6

478294R1

BAR, PTO hanger support (1964- )

1шт.

7

474486R91

TONGUE ASSY, hitch (2 knuckle) (310 only)

1шт.
