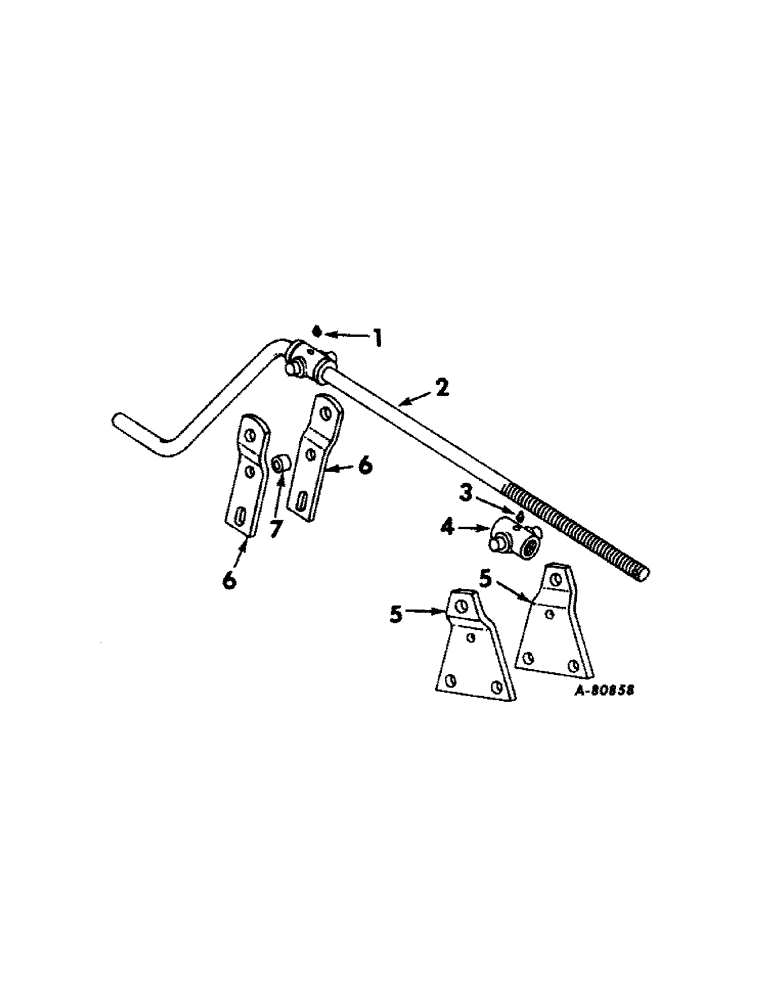

Запчасти Case IH 410 (F-12[A]) - HEIGHT ADJUSTING HAND CRANK

1

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4" self-tapping lubrication

1шт.

PIN, 1/4 x 2" cotter

1шт.

2

478946R11

CRANK ASSY, adjusting

1шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" drive type straight lubrication

1шт.

4

661415R1

SWIVEL, threaded

1шт.

5

478949R1

SUPPORT

swivel

1шт.

5

478949R1

SUPPORT

swivel

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8 x 2-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 12

2шт.

6

478945R1

SUPPORT, axle arm swivel

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2 x 2-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

43373D

SPACER

1шт.

280954

NUT,3/4"-10, G5

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.
