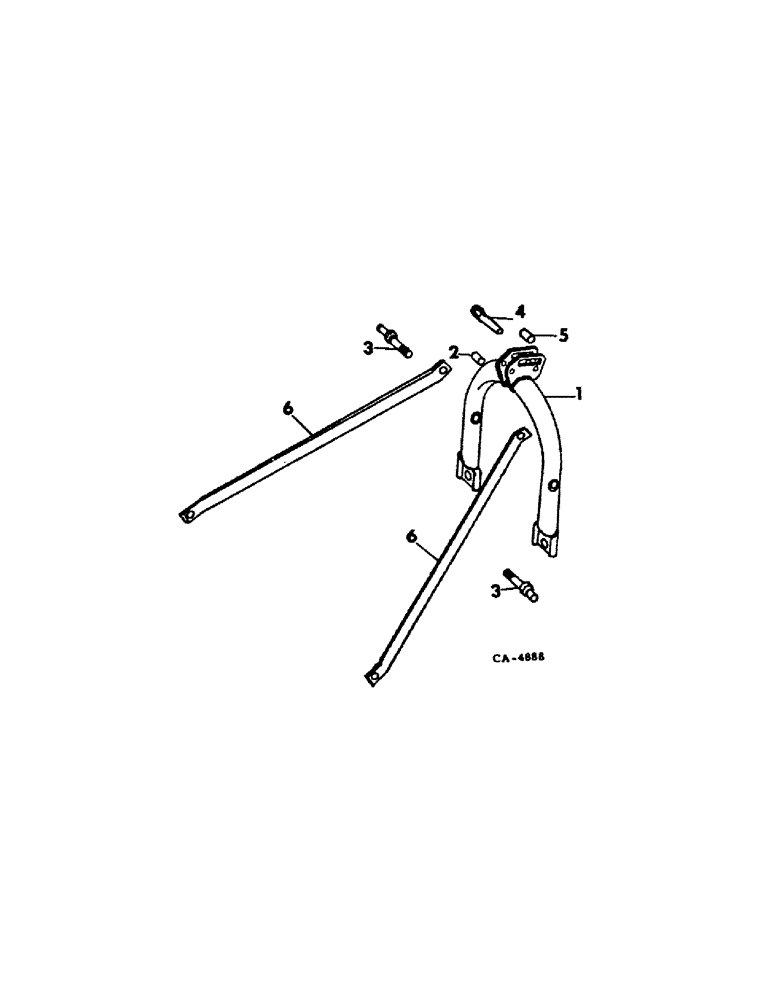

Запчасти Case IH 400 (U-4) - THREE-POINT HITCH

1

481706R12

PIPE ASSY, drawbar hanger

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

2

466606R1

SPACER, upper link

1шт.

22892R1

NUT, 5/8-11 nylon insert

2шт.

3

481614R1

PIN

link, category I

2шт.

3

481615R1

PIN

link, category II

2шт.

19831R1

LOCK NUT,7/8"-14

NUT, 7/8-14 zinc nylon insert

2шт.

4

680580R91

PIN ASSY, upper link, category II

1шт.

5

380582R1

BUSHING

upper, category II

1шт.

6

58776C1

GAUGE

BRACE, hitch upper

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 znd hex-hd cap, upper hitch braces to upper link brackets

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, braces to cutter box

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. 2-way lock

3шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.
