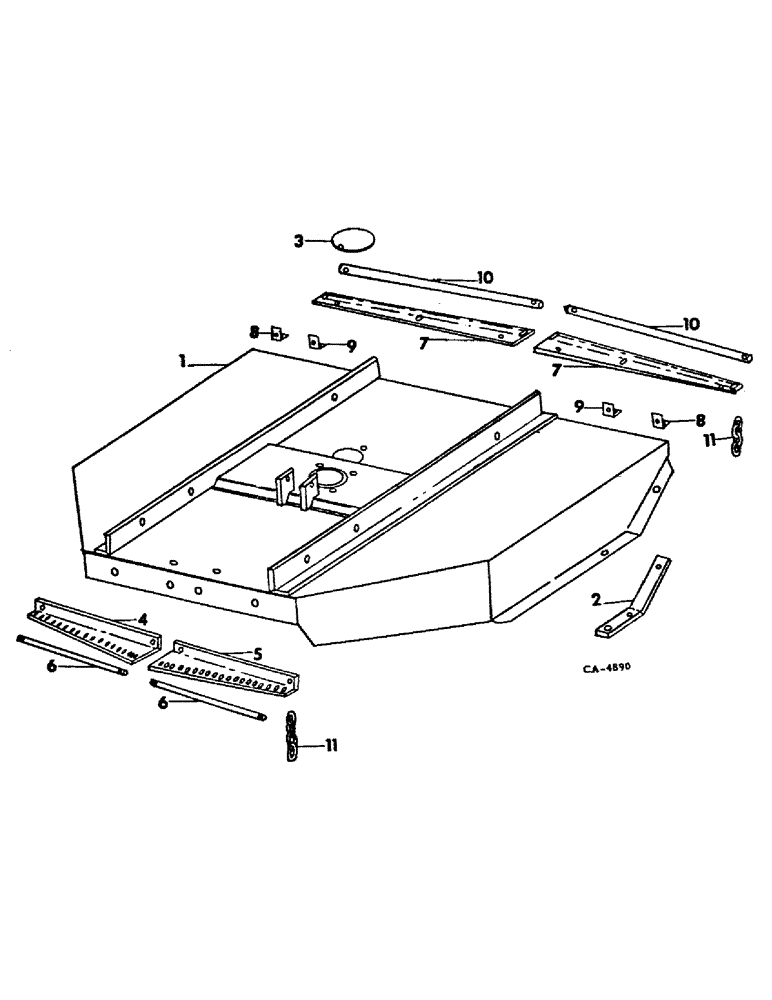

Запчасти Case IH 400 (U-3) - MAIN FRAME AND CHAIN GUARD

1

58779C1

HOUSING W/PRODUCT GRAPHICS 58817C1, 61918C1 and 702707C1 assy main frame

1шт.

2

59791C1

RUNNER, wear

2шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 znd no. 3 hd plow

6шт.

607891R1

WASHER

15/32 x 1 x 16 ga znd

6шт.

9413954

LOCK NUT,7/16"-14, GB

NUT, 7/16 PHC prevailing torque lock

6шт.

3

58792C1

COVER, blade bolt access

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC prevailing torque lock

1шт.

4

58810C1

CHAIN GUARD, rear LH

1шт.

5

58811C1

CHAIN GUARD, rear RH

1шт.

180573

SCREW, 1/2-13 x 1 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

58812C1

ROD, rear chain guard

2шт.

12202R1

PIN, 1/8 x 2 parkerized cotter

4шт.

7

58813C1

CHAIN GUARD, front

2шт.

8

58814C1

ANGLE, chain guard outer

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

58815C1

ANGLE, chain guard inner

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

10

58816C1

ROD, front chain guard

2шт.

12202R1

PIN, 1/8 x 2 parkerized cotter

4шт.

11

469318R91

CHAIN, safety, 58 links

4шт.
