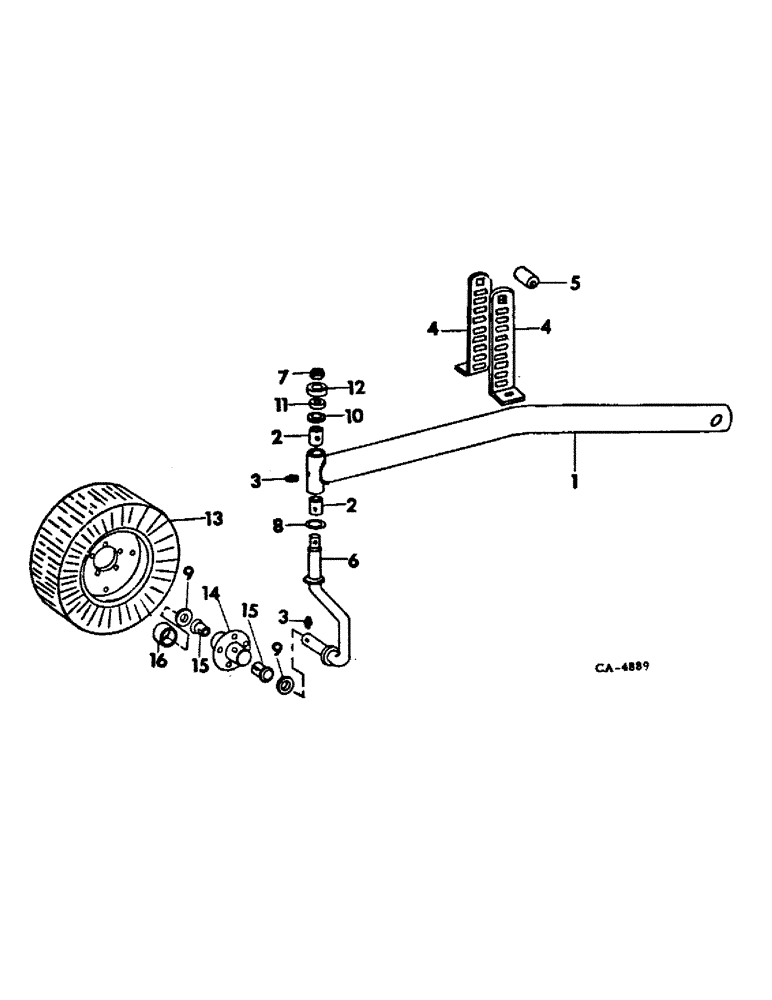

Запчасти Case IH 400 (U-5) - GAUGE WHEEL

1

58801C1

PIPE ASSY, gauge wheel

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

1шт.

574848R1

NUT, 1/2-13 C-Z hex. two-way lock

1шт.

2

454154R1

BUSHING

2шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tapping str lub

2шт.

4

58803C1

BRACKET, gauge wheel

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

18713R1

SCREW,Short NK, 1/2"-13 x 4 1/2", G2

BOLT, 1/2 x 4-1/2 znd sq-nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

3шт.

5

652415R1

SPACER

1шт.

18738R1

BOLT

3/4 x 4-1/2 znd sq-nk crg

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z hex. two-way lock

1шт.

6

481187R11

AXLE ASSY, caster wheel

1шт.

7

69442D

NUT

3/4-10 slt jam hex.

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4 x 1-1/4 slt spring

1шт.

8

482013R1

WASHER

1.141 x 1.56 x .12 H.T.

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga

2шт.

10

575814R1

WASHER

25/32 x 2 x 11 ga

1шт.

11

465232R1

RUBBER WASHER

rubber

1шт.

12

465231R1

CUP WASHER

cupped axle

1шт.

13

469396R91

WHEEL

W/TIRE, gauge 4.00 x 8

1шт.

14

58804C1

HUB ASSY, gauge wheel

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

5шт.

15

481892R1

BUSHING

BEARING

2шт.

16

481189R1

CAP

wheel hub, machines built 1973

1шт.
