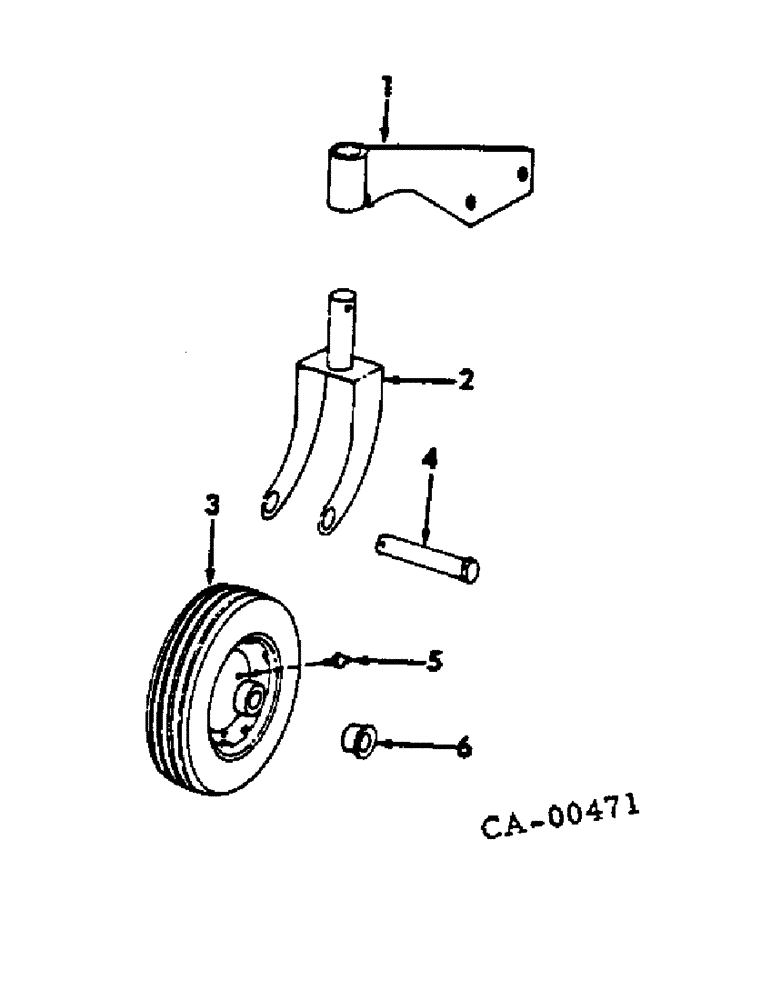

Запчасти Case IH 3160 (B-10) - 3160 ROTARY CUTTER, WHEELS / PRODUCT GRAPHICS

1

542178R1

ARM

WHEEL ASSY, mounting arm guide

2шт.

2

474103R91

FORK

W/SHAFT, 474744R1, guide wheel

2шт.

103400

PIN,5/32" x 2"

Split (Cotter) , 5/32" x 2"

2шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

3

WHEEL W/BUSHINGS, guide, on orders for 487301R91 furnish 474104R92 wheel with bushing

2шт.

4

474105R1

PIN

wheel axle

2шт.

103400

PIN,5/32" x 2"

Split (Cotter) , 5/32" x 2"

2шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 C-Z

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

6

487302R1

BUSHING

wheel, used w/wheel 487301R91

4шт.

6

475974R2

BUSHING

wheel, used w/wheel 474104R92

4шт.

547494R92

DECAL

PACKAGE, IH trademark product graphics

1шт.

547496R92

DECAL

PACKAGE, International product graphics

1шт.
