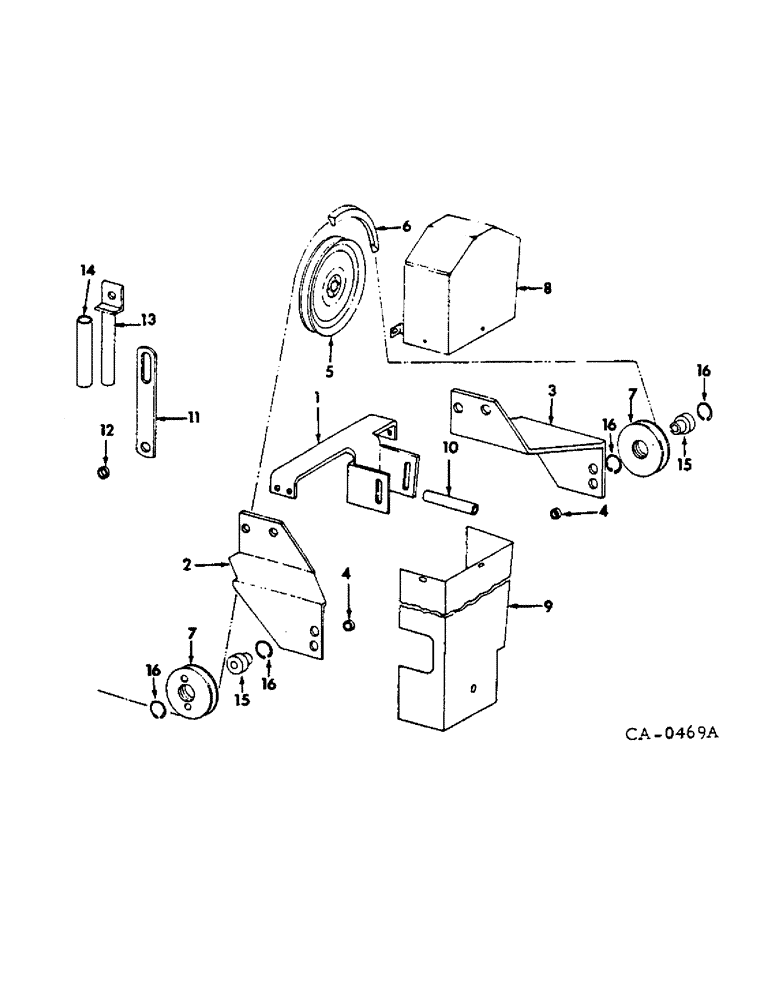

Запчасти Case IH 3160 (B-09) - 3160 ROTARY CUTTER, DRIVE AND SUPPORTS

1

493783R1

BRACKET ASSY, idler support

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

542046R1

BRACKET, side pivot LH

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 CDP hex. torque lock

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

1шт.

3

542047R1

BRACKET, side pivot RH

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 CDP hex. torque lock

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

1шт.

4

474061R2

SPACER

BUSHING, pivot

2шт.

5

491881R2

PULLEY

driver

1шт.

137263

STRIP

3/16" x 2"

1шт.

6

542177R1

BELT

drive

1шт.

7

543125R2

PULLEY

mule drive idler, replaces 491819R91 by also ordering bearing 543126R91 and two rings, 273026R1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

8

491884R11

SHIELD

ASSY, upper

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

9

492970R2

SHIELD

lower

1шт.

120376

NUT,5/16"-18, G5

4шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

20484R1

BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5

SCREW, 5/16-18 x 6-1/2 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

4шт.

10

491997R1

SPACER,3/8" X-Strng Pipe x 5 3/4"

lower shield mtg

1шт.

11

542120R1

LINK

lift

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

4шт.

12

542045R1

WASHER

BUSHING, lift link

4шт.

13

542143R1

GUARD, platform bumper

1шт.

14

386283R1

GRIP

bumper guard handle

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

543126R91

BALL BEARING,19.33mm ID x 34.92mm OD x 23.14mm W

ASSY, pulley ball

2шт.

16

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, , brg 1.375", Int, #137

4шт.
