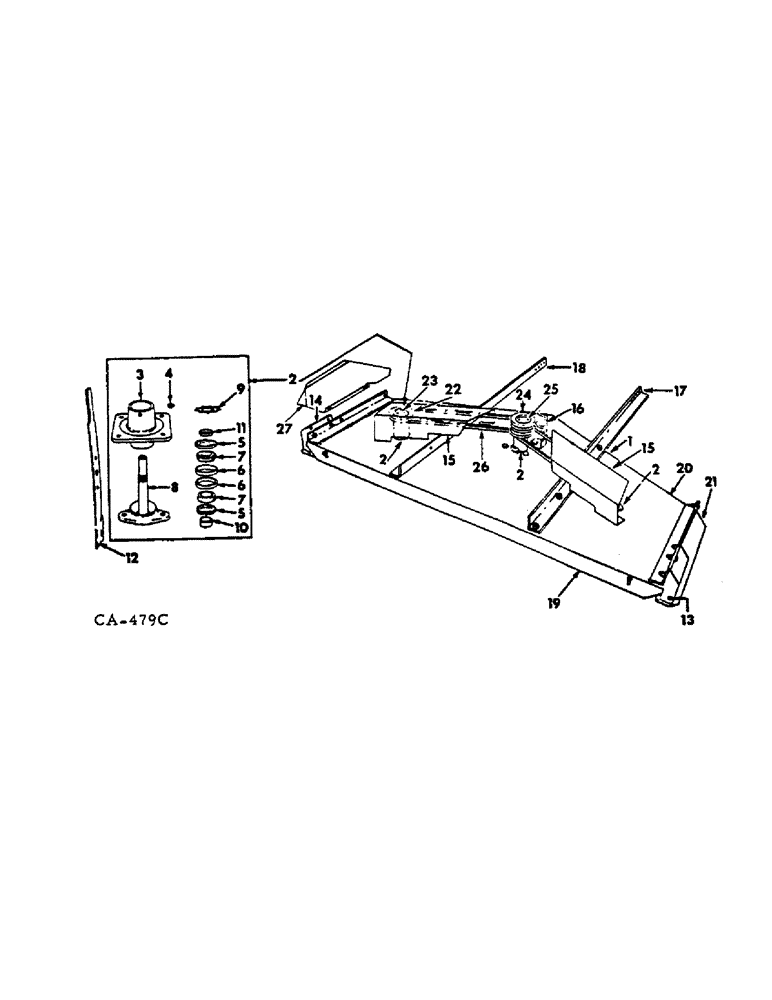

Запчасти Case IH 3160 (B-07) - 3160 ROTARY CUTTER, PLATFORM AND SPINDLE

1

474150R91

PLATFORM

1шт.

2

474151R91

SPINDLE

ASSY, cutter blade

3шт.

3

474093R1

HOUSING

spindle

1шт.

86837293

SHAFT

1/2-20 x 1 znd hex-hd cap

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

8шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

5

474094R91

OIL SEAL

oil

2шт.

6

572564R1

BEARING CUP

BEARING, spindle housing cup

2шт.

7

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING ASSY, cone

2шт.

8

474152R91

SHAFT

ASSY, spindle

1шт.

219760

BACK-UP RING

1/4 C-Z hex jam

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

1шт.

9

474097R1

WASHER

star

1шт.

10

474153R1

SPACER

bottom

1шт.

11

474095R1

WASHER

SPACER, top

1шт.

12

547191R1

BLADE

cutter

1шт.

443339

NUT

1/2-13 C-Z hex lock

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

6шт.

13

474035R91

SHOE

RUNNER ASSY, LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

474036R91

SHOE

RUNNER ASSY, RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

542145R2

GUARD

belt RH

1шт.

15

542144R2

GUARD

belt LH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

474156R91

GUIDE

ASSY, belt

1шт.

17

542118R1

ANGLE, lift LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

4шт.

18

542119R1

ANGLE, lift RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

4шт.

19

474159R1

BAR

SHIELD, front

1шт.

20

474160R1

SUPPORT

SHIELD, rear

2шт.

21

474039R1

SUPPORT

PLATE, side deflector

2шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

16шт.

22

474161R1

PULLEY

outer spindle

2шт.

474098R1

KEY,3/16" Sq x 1 1/4", Par

3/16 x 1-1/4 sq parallel

2шт.

23

474162R1

HUB

outer spindle

2шт.

326-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

SCREW, 1/4-20 x 1-1/8 znd hex-hd cap

6шт.

24

474163R1

PULLEY

center spindle

1шт.

474098R1

KEY,3/16" Sq x 1 1/4", Par

3/16 x 1-1/4 sq parallel

1шт.

25

474164R1

HUB

center spindle

1шт.

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

SCREW, 1/4-20 x 1-3/8 znd hex-hd cap

3шт.

26

478263R91

SET OF BELTS,0.71" W x 56.85" L

2 Matched, V-Belt 0.71" W x 56.85" L

1шт.

27

542725R1

SHIELD

discharge

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.
