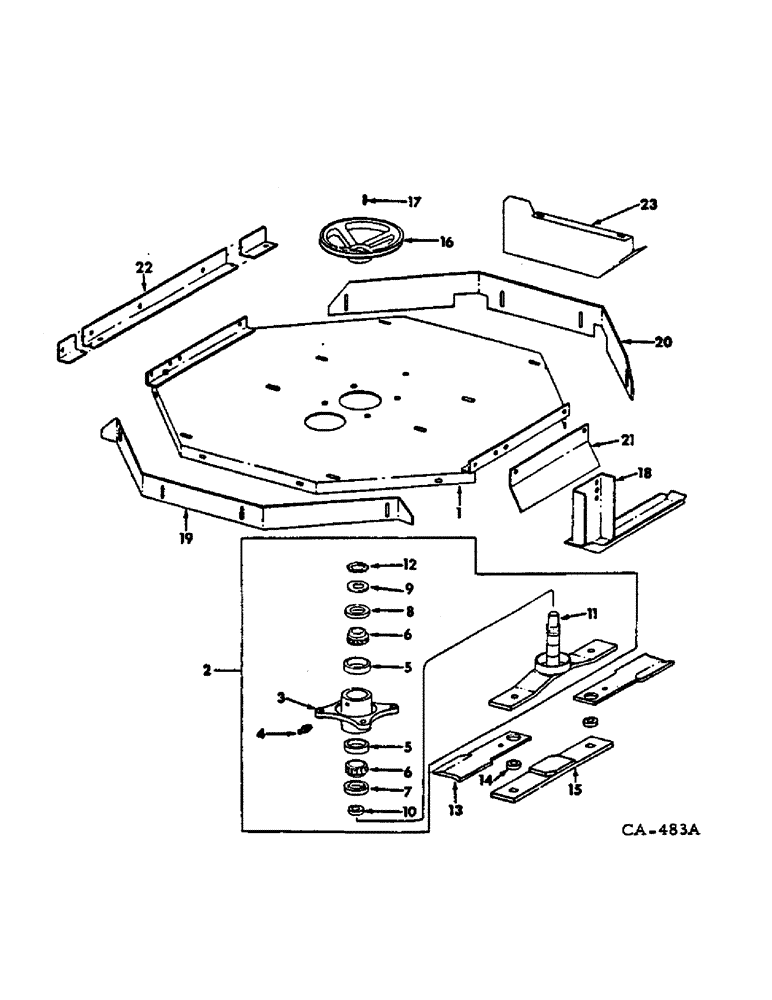

Запчасти Case IH 3142 (B-02) - 3142 ROTARY CUTTER, PLATFORM AND SPINDLE

1

474013R91

PLATFORM ASSY

1шт.

2

542063R1

SPINDLE ASSY

1шт.

3

542109R1

HOUSING SPINDLE

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg angle lub

1шт.

5

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, cup

2шт.

6

474017R91

BEARING ASSY,34.92mm ID

ASSY, cone

2шт.

7

474018R91

OIL SEAL

oil

1шт.

8

661876R91

OIL SEAL

SEAl, top oil

1шт.

9

474022R1

WASHER

spindle

1шт.

10

474020R1

SPACER

spindle

1шт.

11

542108R1

SHAFT ASSY, spindle

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 C-Z hex. jam

1шт.

12

474023R1

WASHER

star

1шт.

13

474025R1

BLADE

mower cutter

2шт.

14

474026R1

BUSHING,23.02mm ID x 37.57mm OD x 9.91mm L

blade

2шт.

15

474027R91

BAR

PLATE, tie

1шт.

474030R1

BOLT,7/8" - 14 x 2 1/4", Steel

blade

2шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 C-Z slt hex.

2шт.

137253

PIN, 3/16 x 1-5/8 C-Z cot

2шт.

16

542112R1

PULLEY

1шт.

542724R1

CAP, retainer

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1/4 x 1-1/4 sq parallel

1шт.

18

474036R91

SHOE

RUNNER ASSY, RH

1шт.

18

474035R91

SHOE

RUNNER ASSY, LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

19

474037R1

SHIELD, front

1шт.

20

474038R1

SHIELD, rear

1шт.

21

474039R1

SUPPORT

PLATE, side deflector

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

16шт.

22

542043R1

ANGLE, lift RH

1шт.

22

542042R1

ANGLE, lift LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

8шт.

23

542725R1

SHIELD

discharge

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
