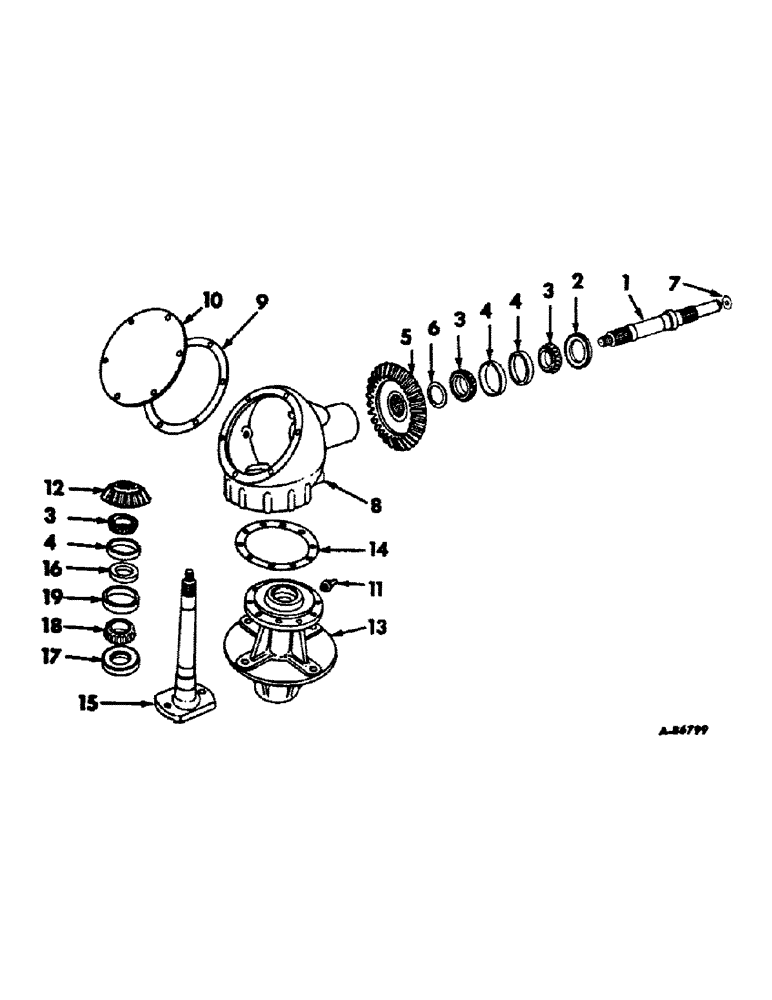

Запчасти Case IH 311 (Q-05) - GEAR HOUSING AND ROTOR BAR

1

485355R2

SHAFT, horizontal

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 C-Z slt. hex.

1шт.

493814R1

WASHER, 29/32 x 2 x 3 ga

1шт.

60049H

WASHER, 1-5/32 x 1-1/2 x 16 ga

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

378157R91

OIL RESERVOIR

SEAL, oil

1шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, gear case cone

3шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Gear case

3шт.

5

549251R1

GEAR

bevel drive, 20T, 540 RPM

1шт.

6

663604R1

SHIM

gear case, .020

2шт.

6

663605R1

SHIM

gear case, .007

2шт.

6

663606R1

SHIM

gear case, .005

2шт.

7

486791R1

WASHER

horizontal shaft retaining

1шт.

180440

WASHER

7/16 C-Z HV int-tooth lock

1шт.

21460R1

BOLT W/NYLON INSERT, 7/16-14 x 1-3/8 LH HV duty hex-hd mach

1шт.

8

478800R1

HOUSING, upper gear

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8 sq-hd pipe

1шт.

495538R1

PLUG, main drive housing

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

9

663607R1

GASKET

gear case cover

1шт.

10

663596R1

COVER, main gear housing

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tapping str lub, lower shaft housing

1шт.

12

549252R1

PINION

GEAR, bevel driven, 15T, 540 RPM

1шт.

13

469252R2

HOUSING, lower shaft

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

4шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

SCREW, 7/16-14 x 1-1/2 hex-hd cap

10шт.

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 hex-hd cap

4шт.

131100

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

62177V

WASHER

25/32 x 1-1/2 x 3/16

2шт.

14

478801R1

SHIM, lower shaft housing, .020

2шт.

14

478802R1

SHIM

lower shaft housing, .007

2шт.

14

478803R1

SHIM

lower shaft housing, .005

2шт.

15

485356R3

SHAFT

vertical

1шт.

493814R1

WASHER, 29/32 x 2 x 3 ga

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 C-Z slt. hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

16

20108D

SEAL

lower shaft upper oil

1шт.

17

664068R91

SEAL

lower shaft lower oil

1шт.

18

459454R91

ROLLER BEARING,1.563" ID x 1.01"

BEARING ASSY, lower shaft cone

1шт.

19

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

BEARING, lower shaft cup

1шт.
