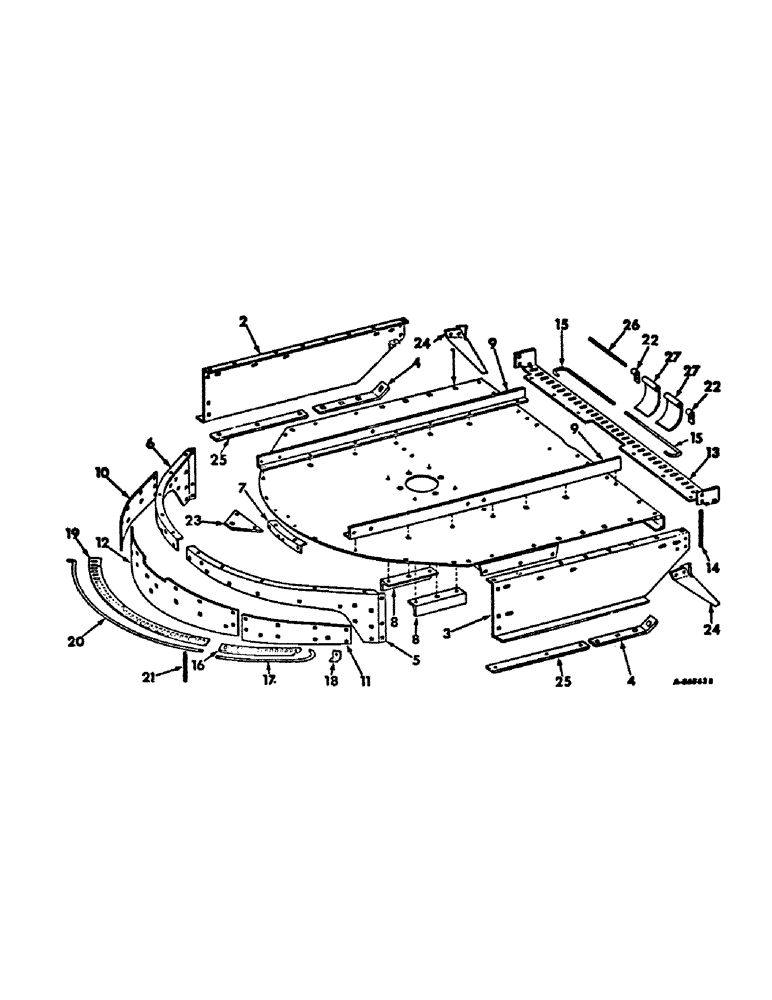

Запчасти Case IH 311 (Q-03) - MAIN FRAME AND RELATED PARTS

1

485229R1

BOX ASSY, cutter

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 cd-pltd hex. lock

2шт.

2

55017C1

SECTION ASSY, side sheet LH, will work for 485234R1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg C-Z

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 hex-hd cap C-Z

3шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg C-Z

3шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg C-Z

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

9шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

9шт.

3

55016C1

SECTION ASSY, side sheet RH, will work for 485235R1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg C-Z

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 hex-hd cap C-Z

3шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg C-Z

3шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg C-Z

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

9шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

9шт.

4

547474R1

BRACE, abrasion resistant runner short

2шт.

19060R1

CARRIAGE BOLT,#3, 1/2" - 13 x 1 1/2", Gr 2

BOLT, 1/2 x 1-1/2 znd no. 3 plow

6шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

6шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

6шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque hex. lock

6шт.

5

485242R1

SECTION, rear sheet RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

485241R1

SECTION, rear sheet LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

485243R1

ANGLE, reinforcement

1шт.

8

478796R1

ANGLE, cutter box reinforcement

2шт.

9

22021C1

ANGLE, reinforcement RH

1шт.

9

55020C1

ANGLE, reinforcement LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

10

485400R1

COVER, back LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

11

485401R1

COVER, back RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

12

485402R1

COVER, back center

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

13

485370R1

BRACKET, chain front

1шт.

21860R1

BOLT, 3/8 x 7/8 C-Z sq-nk crg

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

14

665053R92

CHAIN, safety, 6 links, front, 43 used w/2 in. spacing

1шт.

15

485371R1

ROD, safety chain lock front

2шт.

12202R1

PIN, 1/8 x 2 parkerized cot.

2шт.

M22613

SPACER,1/2" X-Strng Pipe x 1"

10шт.

16

485372R1

BRACKET, chain guard rear

1шт.

17

485373R1

ROD, safety chain rear

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

12202R1

PIN, 1/8 x 2 parkerized cot.

1шт.

276261R1

SPACER

6шт.

18

485374R1

ANGLE, chain guard

5шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

3/8 x 7/8 C-Z hex-hd mach

5шт.

21860R1

BOLT, 3/8 x 7/8 cd-pltd sq-nk crg

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

19

485375R1

BRACKET, chain guard back

1шт.

20

485376R1

ROD, safety chain back

1шт.

12202R1

PIN, 1/8 x 2 parkerized cot.

1шт.

21

665054R92

CHAIN, safety, 3 links rear, 40 used w/2 in. spacing, 32 used w/1 in. spacing

1шт.

22

484545R1

CLIP, dirt shield

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

23

469398R1

PLATE, harrow hitch, Serial Range: 1966-1970

1шт.

180178

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

24

484540R1

FINGER, pickup LH, Serial Range: 1966-1971

1шт.

24

484541R1

FINGER, pickup RH, Serial Range: 1966-1971

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

6шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

25

485736R1

BAR

wear runner extension

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

13/32 x 1 x 16 C-Z

6шт.

26

484544R1

ROD, curtain hanger

1шт.

178373

WASHER, 17/32 x 1 x 16 ga C-Z

3шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 parkerized cot.

2шт.

27

488271R1

CURTAIN, deflector

2шт.
