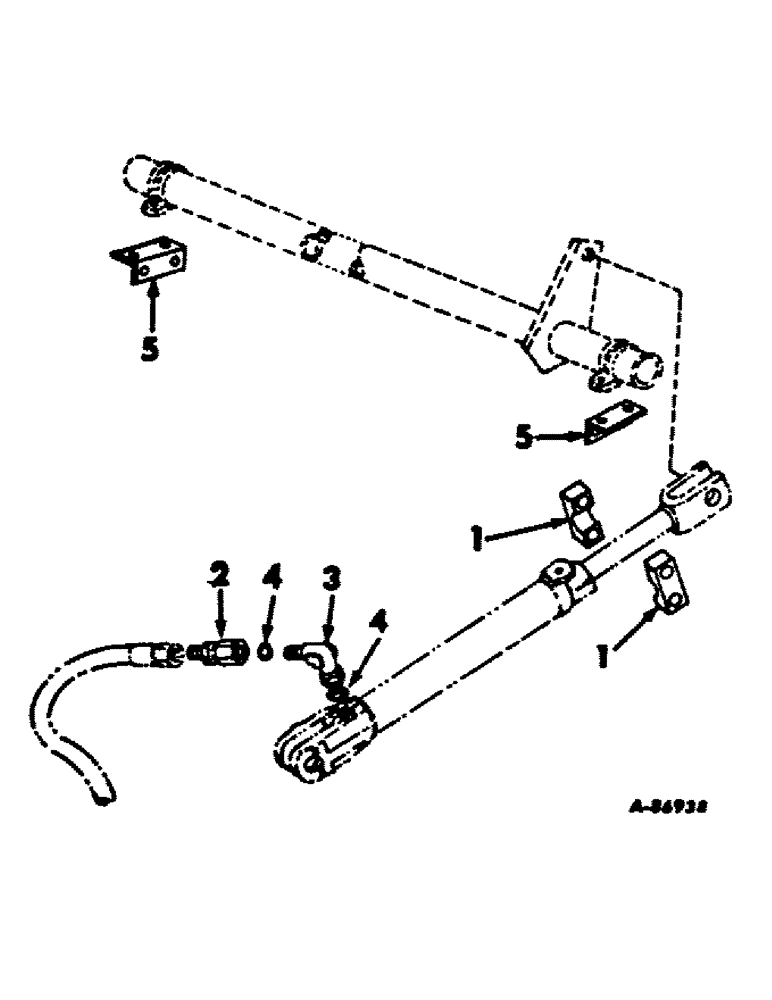

Запчасти Case IH 311 (Q-21) - HYDRAULIC CYLINDER, SINGLE ACTION

485433R91

PACKAGE, single action hyd cyl adapting, for use when dual position axle is assembled forward on cutter to front of gear box and spindle assemblies are to the rear

1шт.

1

480810R1

STOP, single action hyd cyl

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

526251R91

UNION

RESTRICTOR, hyd

1шт.

3

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

4/8-11 C-Z hex.

2шт.

5

485367R1

ANGLE, axle brg bracket

2шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd nylon insert

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

19441R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

4шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

4шт.
