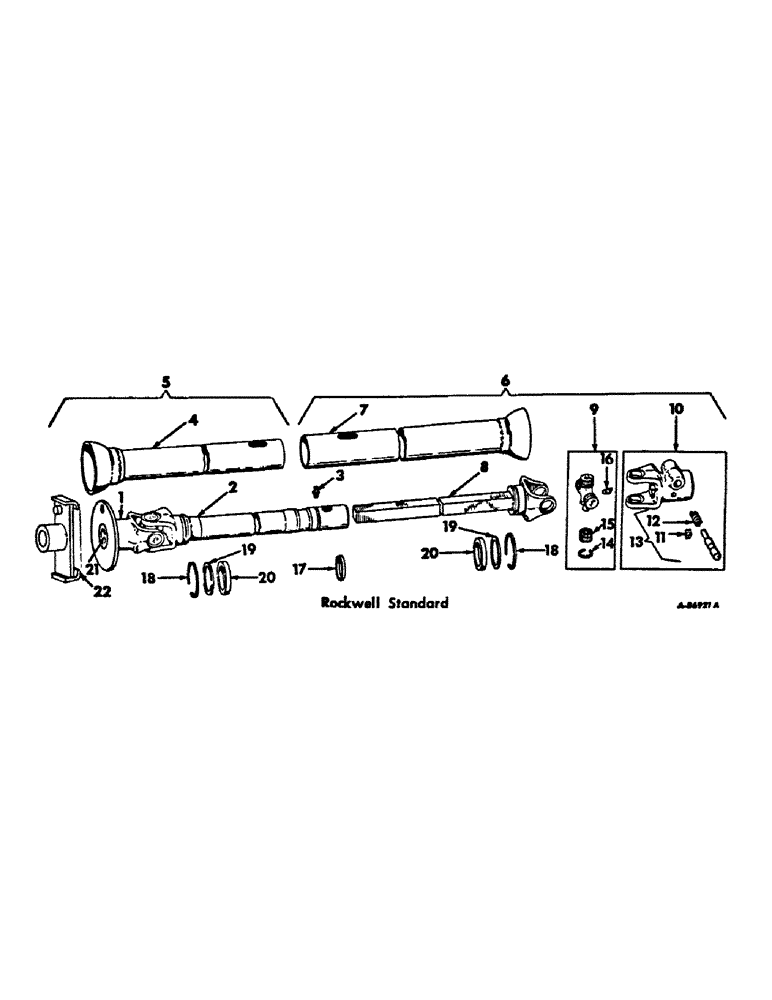

Запчасти Case IH 311 (Q-15) - POWER DRIVE EQUIPMENT, FOR TWO OR THREE POINT HITCH

1

485698R91

YOKE ASSY, flange

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

1

485704R91

YOKE

ASSY, flange

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

2

485706R1

YOKE, tube & sleeve assy

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lub

1шт.

4

485705R1

SHIELD ASSY, inner

1шт.

5

485493R91

JOINT ASSY, single universal shielded rear half, implement end

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

5

485494R91

JOINT ASSY, single universal shielded rear half, implement end

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

6

469346R91

JOINT ASSY, single universal shielded front half, tractor end

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

7

469414R1

SHIELD, outer

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

8

469415R1

YOKE

SHAFT W/YOKE

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

9

347960R91

U-JOINT SPIDER

KIT, center cross service

2шт.

10

660484R21

FORK

YOKE ASSY, quick detachable

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

13

455346R21

PIN

ASSY, locking

1шт.

Use w/slip clutch drive w/540 RPM

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

14

495962R1

RING

snap

8шт.

15

661671R91

JOINT

BEARING ASSY, needle

8шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

17

613439R1

BRACKET

SUPPORT, nylon

1шт.

18

613436R1

CLAMP

RING, snap shield

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

485393R1

BUSHING

1шт.

22

492500R1

HUB ASSY, driven

1шт.

Use w/shear bolt drive w/540 RPM

1шт.

120376

NUT,5/16"-18, G5

1шт.

454873

BOLT

SCREW, 5/16-18 x 1-3/4 C-Z hex-hd cap, shear bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga

3шт.

492123R1

BOLT,Square, 1/2" - 20 x 1 1/2", Steel

SCREW, 1/2-20 x 1-1/2 cone PT sq hd

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex jam

1шт.
