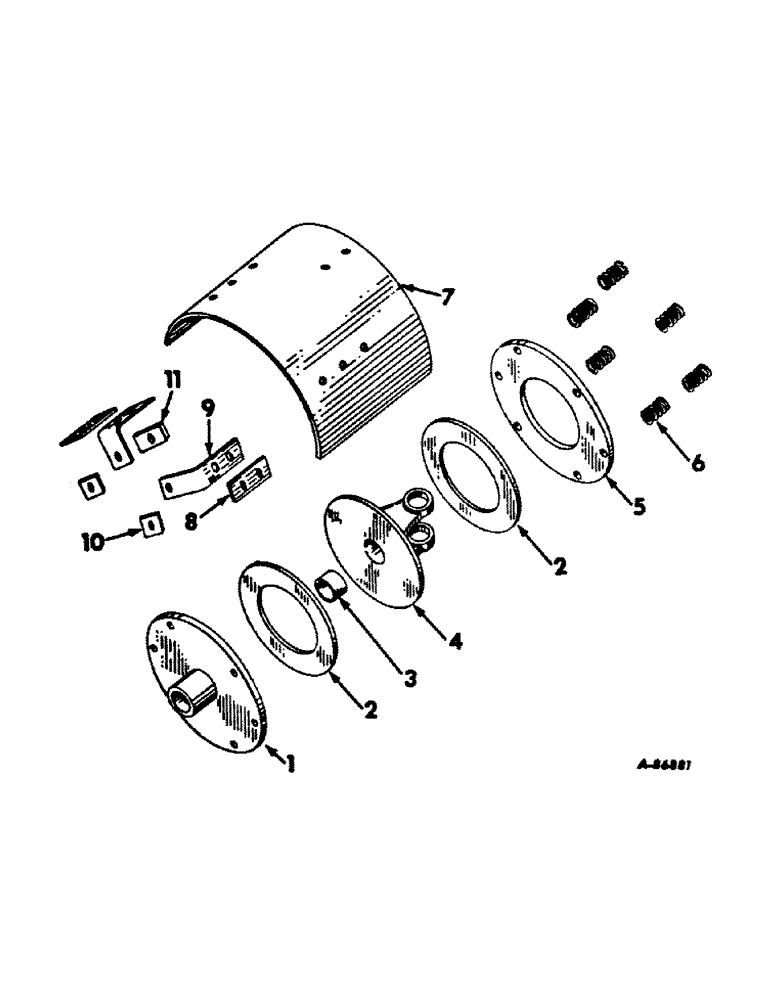

Запчасти Case IH 311 (Q-14) - SLIP CLUTCH

1

492503R1

PLATE ASSY, clutch

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

6шт.

575807R1

WASHER

13/32 x 1 x 11 ga

6шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga

3шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

6шт.

492123R1

BOLT,Square, 1/2" - 20 x 1 1/2", Steel

SCREW, 1/2-20 x 1-1/2 cone PT sq-hd

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex jam

1шт.

2

474599R1

FACING

clutch

2шт.

3

485393R1

BUSHING

flange yoke

1шт.

4

485704R91

YOKE

W/BUSHING ASSY, flange

1шт.

5

460498R1

RETAINER

PLATE, clutch floating

1шт.

6

M14033

SPRING

compression

6шт.

7

485389R1

SHIELD ASSY, slip clutch

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

4шт.

8

469913R1

SPACER, rubber

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

9

469383R1

BRACKET, slip clutch shield

2шт.

21458R1

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

10

471111R1

PAD

SPACER, rubber

2шт.

11

478359R1

RETAINER, bolt

2шт.
