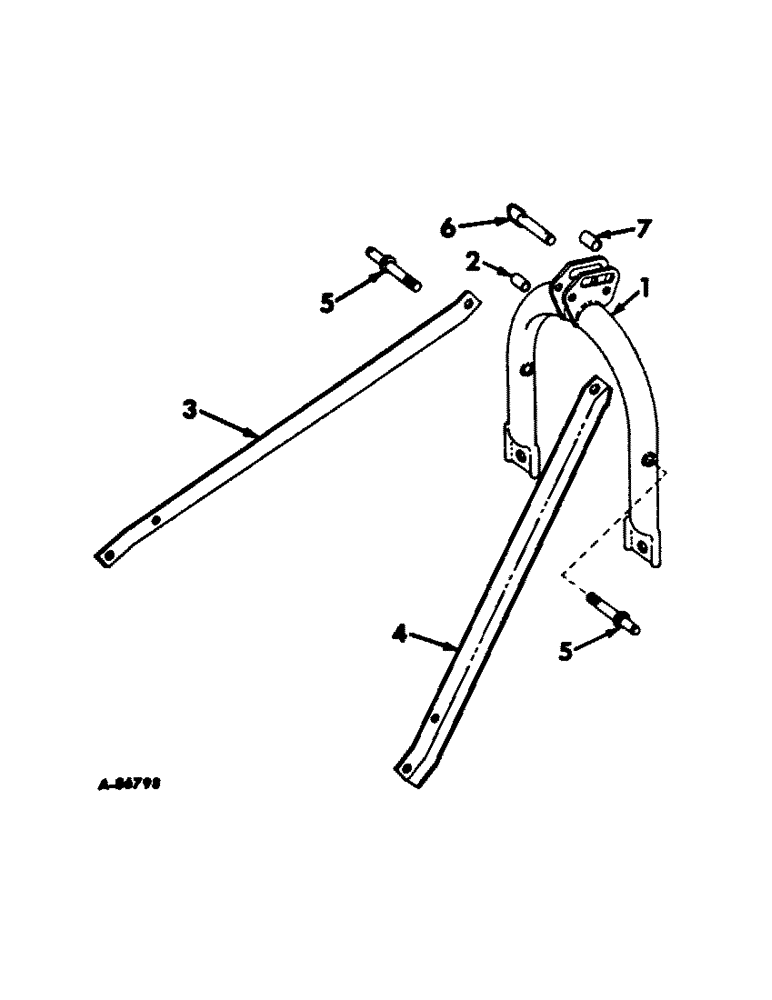

Запчасти Case IH 311 (Q-08) - THREE POINT HITCH

1

481706R12

PIPE ASSY, drawbar hanger

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 hex-hd cap

2шт.

2

466606R1

SPACER, upper link

1шт.

22892R1

NUT, 5/8-11 nylon insert

2шт.

3

478098R1

BRACE, upper link left

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

4

478099R1

BRACE, upper link right

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8-11 x 4 C-Z hex-hd mach upper link braces to pivot bracket

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.

5

481614R1

PIN

link, category I

1шт.

5

481615R1

PIN

link, category II

1шт.

19831R1

LOCK NUT,7/8"-14

NUT, 7/8-14 zinc nylon insert

2шт.

6

380580R91

PIN

ASSY, upper link

1шт.

7

380582R1

BUSHING

upper

1шт.

481612R91

PACKAGE, category I three-point hitch service, consists of (2), nut 19831R1, (2), pin 481614R1, (1), spacer (NSS), 10625R1

1шт.

481613R91

PACKAGE, category II three-point hitch service, consists of (2), nut 19813R1, (2), pin 481615R1, (1), spacer (NSS), 10625R

1шт.
