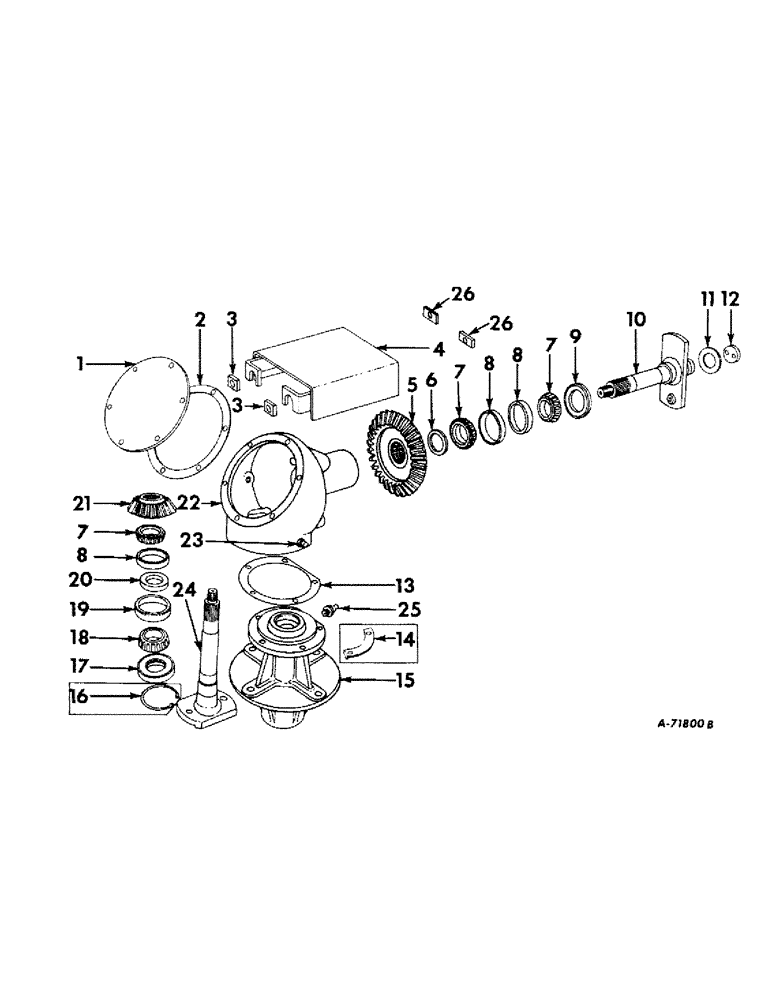

Запчасти Case IH 310 (F-07) - MAIN DRIVE, FOR 310

1

663596R1

COVER, main gear housing

1шт.

BOLT, 5/16 x 3/4 mach

6шт.

WASHER, 5/16 lock

6шт.

2

663607R1

GASKET

gear case cover

1шт.

3

471111R1

PAD

SPACER, rubber

2шт.

4

469400R91

SHIELD ASSY, shear bolt

1шт.

BOLT, 1/2 x 1 sq hd mach

2шт.

478359R1

RETAINER, bolt

2шт.

5

663588R1

GEAR, bevel drive T, for 540 RPM-PTO

30шт.

5

469248R2

GEAR, bevel drive, T for 1000 RPM-PTO

20шт.

6

663604R1

SHIM

gear case, heavy

2шт.

6

663605R1

SHIM

gear case, medium

2шт.

6

663606R1

SHIM

gear case, light

2шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, gear case bearing

3шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Gear case

3шт.

9

378157R91

OIL RESERVOIR

OIL SEAL, gear case

1шт.

10

663995R92

SHAFT ASSY, horizontal

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 UNF hex-slt

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

SCREW, 5/16 UNF x 3/4 cap

2шт.

17520R11

BOLT

W/NUT, 5/16 x 2 mach, shear bolt

1шт.

WASHER, 5/16 lock

3шт.

453599R1

WASHER

29/32 x 2 x 1/4

1шт.

11

659625R1

WASHER

wear

1шт.

12

659326R1

WASHER, drive shaft

1шт.

13

478801R1

SHIM, barrel case, heavy, will work for 663601R1

2шт.

13

478802R1

SHIM

barrel case, medium, will work for 663602R1

2шт.

13

478803R1

SHIM

barrel case, light, will work for 663603R1

2шт.

14

470016R1

LOCK, bolt, order 5 bolts 338979R1 and 5 washer, 103328

3шт.

15

469252R2

HOUSING, lower shaft

1шт.

338979R1

BOLT, 7/16 x 1-1/2 twelve-pt

5шт.

NUT, 3/4 ESNA stop

4шт.

SCREW, 3/4 x 2-1/2 cap

4шт.

WASHER, 7/16 hv lock

5шт.

62177V

WASHER

25/32 x 1-1/2 x .188

2шт.

16

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , vertical drive shaft (1962-1964) 3.156", Int, #315

1шт.

17

664068R91

SEAL

OIL SEAL, lower shaft lower

1шт.

18

459454R91

ROLLER BEARING,1.563" ID x 1.01"

CONE, lower shaft bearing

1шт.

19

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP, lower shaft bearing

1шт.

20

20108D

SEAL

OIL SEAL, lower shaft upper

1шт.

21

469392R2

GEAR

bevel T

15шт.

21

663589R1

GEAR, bevel driven, T, for 540 RPM-PTO

17шт.

21

470015R1

GEAR, drive, T, for 1000 RPM-PTO

20шт.

22

478800R1

HOUSING, main gear, will work for 663586R3

1шт.

495538R1

PLUG, 3/8 recessed

1шт.

23

103867

PLUG

3/8 sq-hd

2шт.

24

469253R1

SHAFT, vertical, Serial Range: 1962-1965

1шт.

24

485356R11

SHAFT W/NUT, vertical, 1966 & since

1шт.

455991R1

WASHER, 29/32 x 2 x 3 ga

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 UNF slotted

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

453599R1

WASHER

29/32 x 2 x 1/4

1шт.

25

87414

LUBE NIPPLE,1/4" - 28

FITTING, self tap. straight lub, 1964 and since

1шт.

26

478359R1

RETAINER, bolt

2шт.
