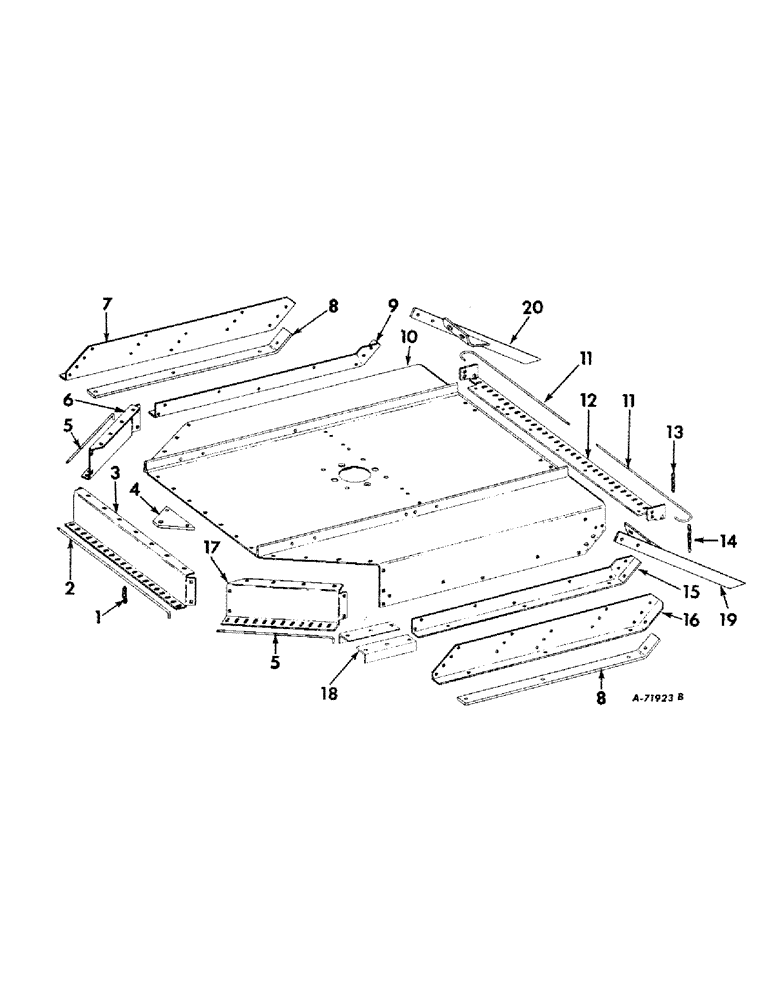

Запчасти Case IH 310 (F-04) - MAIN FRAME AND ATTACHMENTS (FOR 310)

1

665054R92

CHAIN, safety 5/16" coil (3 links) (special) (48)

1шт.

2

469308R1

LOCK, safety chain rear (special) 1/8 x 2" cotter pin

3шт.

3

469239R1

SHEET, back

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

4шт.

BOLT W/NUT, 1/2 x 7/8" crg

2шт.

WASHER, 3/8" lock

4шт.

WASHER, 1/2" lock

2шт.

4

469398R1

PLATE, harrow hitch (special)

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 1-1/2" cap

2шт.

WASHER, 1/2" lock

2шт.

5

469307R1

LOCK, safety chain angled side (special)

2шт.

6

469237R1

SHEET, angle side LH

1шт.

BOLT W/NUT, 3/8 x 1" crg

2шт.

BOLT W/NUT, 1/2 x 1" crg

4шт.

NUT, 3/8"

2шт.

SCREW, 3/8 x 1" cap

2шт.

WASHER, 3/8" lock

4шт.

WASHER, 1/2" lock

4шт.

7

469296R1

RUNNER, adjustable LH (special)

1шт.

BOLT W/NUT, 3/8 x 1" crg

6шт.

BOLT W/NUT, 1/2 x 1-1/4" crg

2шт.

WASHER, 3/8" lock

6шт.

WASHER 1/2" lock

2шт.

8

469309R1

RUNNER, abrasion resistant (special)

2шт.

SCREW, 3/8 x 3/4" cap

8шт.

WASHER, 3/8" lock

8шт.

9

469240R1

RUNNER, stationary LH (special)

1шт.

BOLT W/NUT, 3/8 x 1" crg

6шт.

BOLT W/NUT, 1/2 x 1-1/4" crg

2шт.

WASHER, 3/8" lock

6шт.

WASHER, 1/2" lock

2шт.

10

478804R92

BOX ASSY, cutter (for machines built 1962-64, also order package 478834R91)

1шт.

11

469308R1

LOCK, safety chain - front (special)

2шт.

PIN, 1/8 x 2 cotter

2шт.

12

469305R1

BRACKET, chain front (special)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

11шт.

WASHER, 3/8" lock

11шт.

13

469318R91

CHAIN, safety 5/16" coil (4 links) (special)

32шт.

14

665053R92

CHAIN, safety 5/16" coil (6 links) (special)

4шт.

15

469241R1

RUNNER, stationary RH (special)

1шт.

BOLT W/NUT, 3/8 x 1" crg

6шт.

BOLT W/NUT, 1/2 x 1-1/4" crg

2шт.

WASHER, 3/8" lock

6шт.

WASHER 1/2" lock

2шт.

16

469297R1

RUNNER, adjustable RH (special)

1шт.

BOLT W/NUT, 3/8 x 1" crg

6шт.

BOLT W/NUT

2шт.

WASHER, 3/8" lock

6шт.

WASHER, 1/2" lock

2шт.

17

469238R1

SHEET, angle side RH

1шт.

BOLT W/NUT, 3/8 x 1" crg

2шт.

BOLT W/NUT, 1/2 x 1" crg

4шт.

NUT, 3/8"

2шт.

SCREW, 3/8 x 1" cap

2шт.

WASHER, 3/8" lock

4шт.

WASHER, 1/2" lock

4шт.

18

478796R1

ANGLE, cutter box reinforcement (1964- )

2шт.

NUT, 1/2"

4шт.

SCREW, 1/2 x 1-1/4" cap

4шт.

WASHER, 1/2" lock

4шт.

478834R91

PACKAGE, cutter box reinforcing parts (1962-64), consists of (2) angle 478796R1, (4) nut 102637, (4) screw 179883, (2) screw 271613, (4) washer 103323, (2) washer 62177V

1шт.

19

480287R91

FINGER ASSY, pickup RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20

480286R91

FINGER ASSY, pickup LH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.
