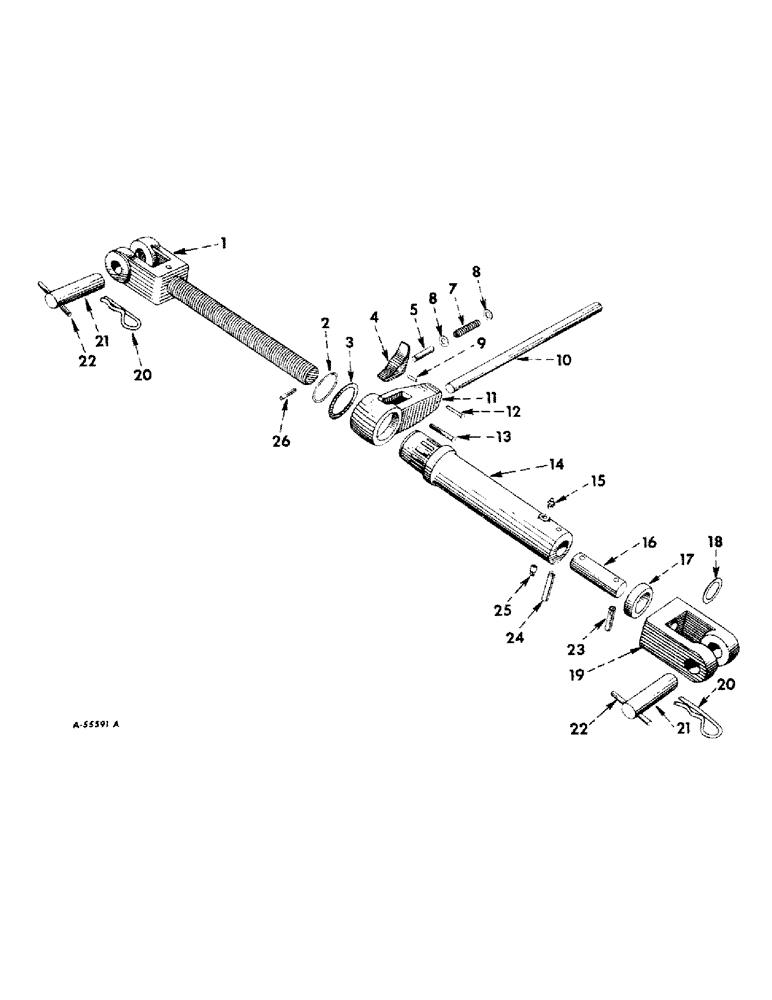

Запчасти Case IH 310 (F-23) - HAND LIFT ATTACHMENT

1

591117R1

SCREW, adjusting and cylinder head cpt.

1шт.

2

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING, retaining

1шт.

3

Q3491

WASHER, 2-1/32 x 2-3/4" x 16 ga

1шт.

3

Q314

WASHER, 2-1/32 x 2-3/4" x 20 ga

1шт.

4

591108R1

PAWL

RATCHET

1шт.

5

591102R1

PIN

ratchet arm

1шт.

6

NOT USED

1шт.

7

M296

SPRING

compression ratchet arm pin

1шт.

8

615047R1

WASHER

ratchet arm pin

2шт.

9

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

10

591103R1

ROD

ARM, ratchet lever

1шт.

11

591109R1

SUPPORT

ratchet lever

1шт.

12

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

13

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

14

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

adjusting hand lift

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

591105R1

ANCHOR

adjusting screw

1шт.

17

50738V

THRUST BEARING

thrust

1шт.

18

591474R1

COLLAR

hand lift

1шт.

19

591110R1

YOKE

adjusting screw

1шт.

20

591107R1

COTTER PIN

quick attaching cot.

1шт.

21

591104R1

PIN

locking hand lift

1шт.

22

443186

GROOVED PIN,3/8" x 2 3/4", Type E

Pin, Grooved, 3/8" x 2 3/4", Type E

1шт.

23

617994R1

PIN, 3/8 x 1-3/4" coiled spring

1шт.

24

616387R1

PIN,3/8" x 2", Coiled

3/8 x 2-1/8" coiled spring

1шт.

25

103865

PLUG, 1/8" pipe

1шт.

26

591101R1

PIN

stop hand lift

1шт.
