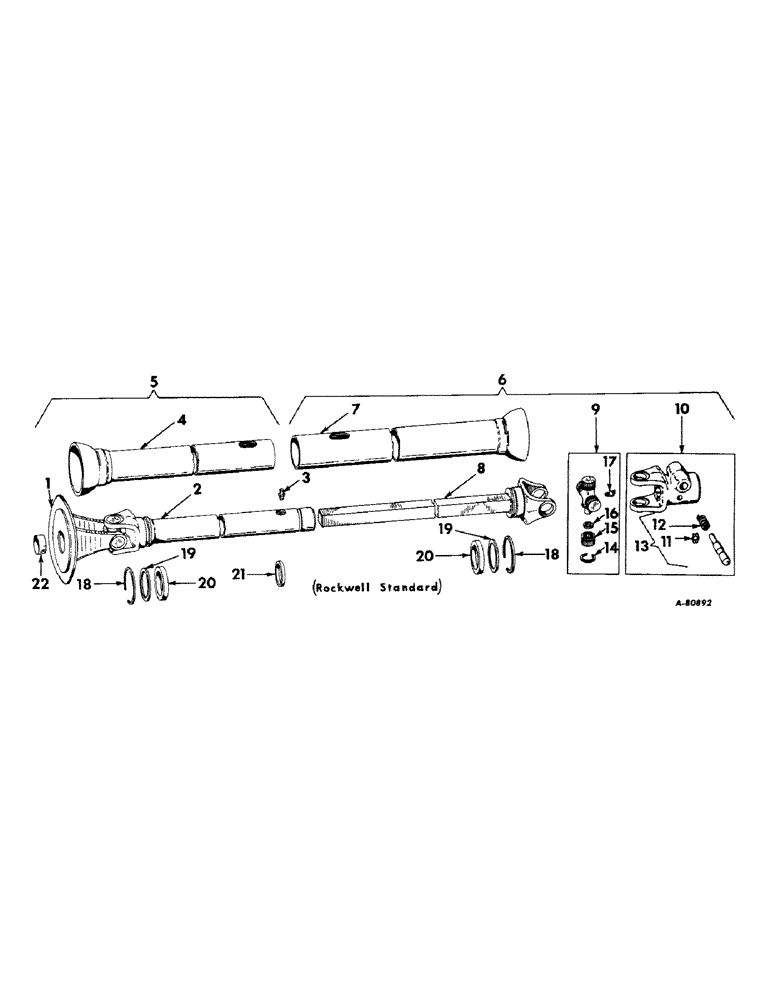

Запчасти Case IH 310 (F-19) - POWER DRIVE EQUIPMENT (ROCKWELL STANDARD), FOR TWO KNUCKLE DRIVE, 310 CUTTER

1

460614R21

YOKE

W/BUSHING, flange

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

1

466382R11

YOKE W/BUSHING, flanged

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

2

474471R1

YOKE W/SLEEVE ASSY, tube

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

2

474480R1

YOKE W/SLEEVE ASSY, tube

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4" straight lubrication

1шт.

4

474472R1

SHIELD, tube and bell assy, inner

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

4

474481R1

SHIELD AND BELL ASSY, inner

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

5

474470R91

JOINT ASSY, rear half of single universal (implement end)

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

5

474479R91

JOINT ASSY, rear half of single universal (implement end)

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

6

474643R91

JOINT ASSY, front half of single universal (tractor end)

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

6

474466R91

JOINT ASSY, front half of single universal (tractor end)

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

6

474473R91

JOINT ASSY, front half of single universal (tractor end)

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

6

473182R91

JOINT ASSY, front half of single universal (tractor end)

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

7

474465R1

SHIELD TUBE AND BELL ASSY, outer

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

7

473509R1

SHIELD AND BELL ASSY, outer

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

8

474464R1

YOKE W/SHAFT

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

473508R1

YOKE W/SHAFT

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

9

569047R91

REPAIR KIT

CENTER CROSS ASSY

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

9

660116R91

NUT

CENTER CROSS ASSY

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

10

568100R92

YOKE

ASSY, quick detachable (1-3/8" spline)

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

10

472857R91

YOKE

ASSY, quick detachable (1-3/8" spline)

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

10

660484R21

FORK

YOKE ASSY, quick detachable (1-3/8" spline)

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

10

583876R11

YOKE

ASSY, quick detachable (1-3/8" spline)

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

12

587479R1

SPRING

locking pin

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

13

455346R21

PIN

ASSY, lock

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

13

631976R91

PIN

ASSY, lock

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

14

576420R1

RING

SNAP RING

8шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

14

495962R1

RING

SNAP RING

1шт.

For 540 RPM-PTO, slip clutch heavy duty drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

15

569044R91

BEARING ASSY

ASSY, needle

8шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

15

661671R91

JOINT

BEARING ASSY, needle

1шт.

For 540 RPM-PTO, slip clutch regular drive

1шт.

For 1000 RPM-PTO, slip clutch heavy duty drive

1шт.

16

NOT USED

1шт.

17

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 PTF 65 deg. lub.

2шт.

18

613436R1

CLAMP

RING, snap

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

SUPPORT, nylon

1шт.

22

460538R1

BUSHING

bronze

1шт.
